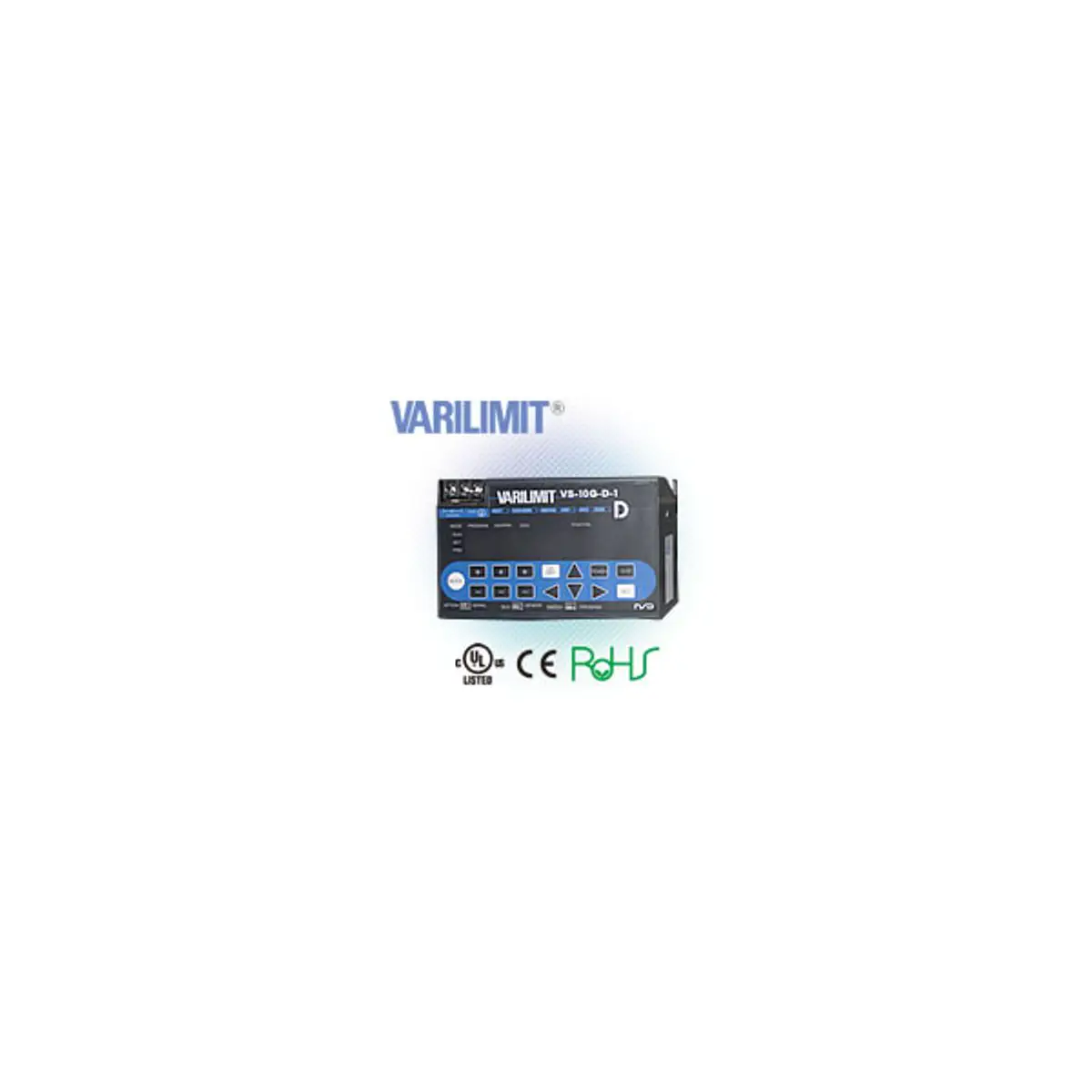

NSD Output Limit VS 10G L Switch Controller

SPECIFICATIONSPECIFICATIONS AND DIMENSIONS● Specification VLS-[ ]PW Items Sensor model Absolute detection range ResolutionTotal number of divisions Linearity error Mass Sliding resistance Permissible mechanical speedPermissible mechanical parallelism Operating Ambient temperature StorageVibration resistance Shock resistance Protection rating Max. sensor cable lengthStandard cable Robotic cableSpecifications VLS-256PWB 256mm 3.90625μmVLS-512PWB VLS-1024PW 512mm 1024mm 7.8125μm 15.625μm 65536 (216) 0.05mm Max.0.1mm Max.0.4mm Max.0.9kg 1.7kg 8.0kg 4.9N or less 7.8N or less 19.6N or less (0.5kgf or less)(0.8kgf or less) (2.0kgf or less) 1000mm/s 1000mm/s 2000mm/s ±0.1mm －20 to ＋60℃－30 to ＋90℃ 110 m/s2 (11.3G) 66.7Hz, up/down 4h, forward/back/left/right 2h each,conforms to JIS D1601 standard 2000 m/s2 (200G), up/down x 3 times each,conforms to JIS C5026 standard IP40, conforms to JEM 1030 standard 100m (4P-S)50m (4P-RBT)VLS-[ ]PY Items Sensor model Absolute detection range Resolution Total number of divisionsLinearity error Mass Sliding resistance Permissible mechanical speed Permissible mechanical parallelismOperating Ambient temperature Storage Vibration resistance Shock resistanceProtection rating Max. sensor cable lengthStandard cable Robotic cableSpecifications VLS-512PYB 512mm 3.90625μmVLS-1024PYB VLS-2048PY 1024mm 2048mm 7.8125μm 15.625μm 131072 (217) 0.1mm Max.0.2mm Max.0.5mm Max.1.0kg 2.1kg 10.2kg 4.9N or less 7.8N or less 19.6N or less (0.5kgf or less)(0.8kgf or less) (2.0kgf or less) 250mm/s 500mm/s 1000mm/s ±0.1mm －20 to ＋60℃－30 to ＋90℃ 110 m/s2 (11.3G) 66.7Hz, up/down 4h, forward/back/left/right 2h each,conforms to JIS D1601 standard 1000 m/s2 (100G), up/down x 3 times each,conforms to JIS C5026 standard IP40, conforms to JEM 1030 standard 60m (4P-S)30m (4P-RBT)72
