Senseca TV500L Signal Converter

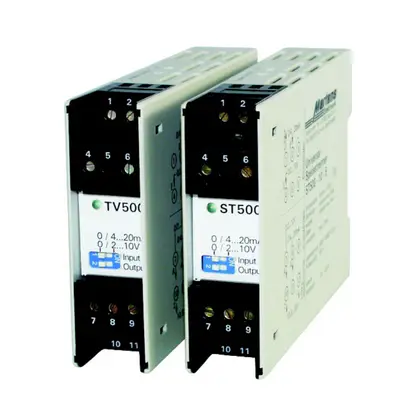

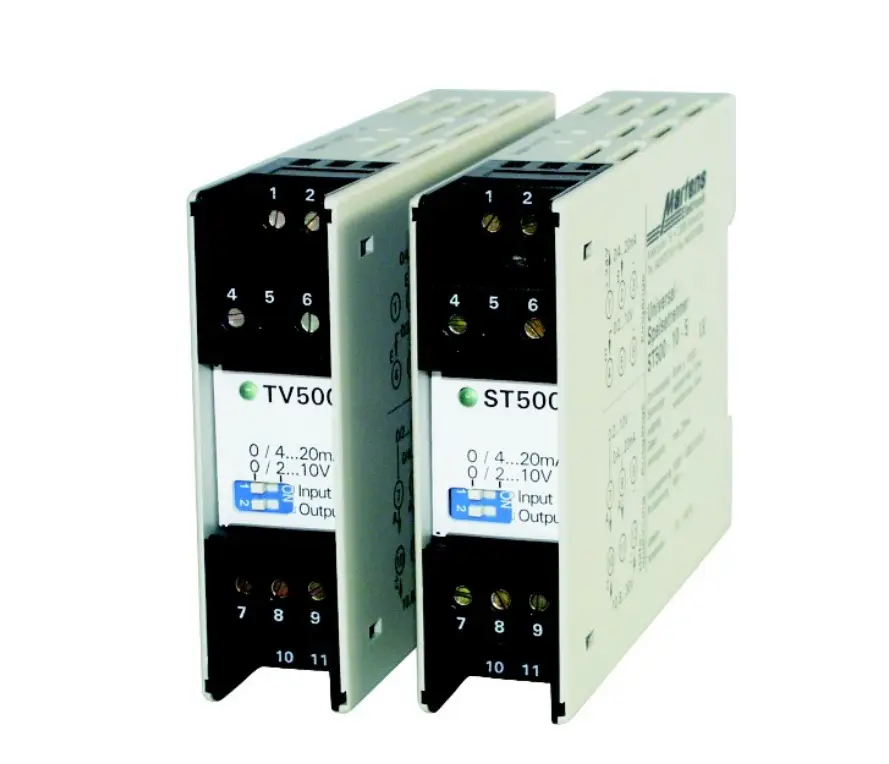

Signal ConverterSenseca Germany GmbH Tenter Weg 2-8 | 42897 Remscheid | GERMANY Phone +49 2191 9672-0 | info(at)senseca.comProduktinformationIsolating Signal Converter TV500 / ST500DimensionsWith integr. transmitter supplyDIN rail mounting TS35CharacteristicsConnection diagramTV500 isolating signal converter can be used to isolate and convert field signals 0/4..20 mA or 0/2..10 V DC into industry standardsignals for process control systems. The ST500 provides a fully floating isolated transmitter supply.Signal converter TV500Power feed signal converter ST500Technical data Power supply Supply voltage :Frequency AC :Power consumption:Operating temperature :CE-conformity :100..265 V AC or 10.8..30 V AC/DC 47..63 Hz < 3.5 VA -10..+60 °CEN 61326-1:2013EN 60664-1:2007Inputs Current: 0/4..20 mA selectable, Ri = 25 Ω overload max. 100 mA Voltage : 0/2..10 V DC selectable,Ri approx. 40 kΩ, overload max. 100 V Span and start value 4 mA/2 V : adjustable approx. ± 5 %Transmitter supply : approx 24 V DC, Ri approx. 150 Ω, (only ST500) short-circuit current approx. 35 mAOutputs Current : 0/4..20 mA selectable, burden max. 1 kΩ Voltage : 0/2..10 V selectable,load max. 15 mA, short-circuit-proof (parallel with the current output max. 5 mA)Rise time (T90) : model 10: < 20 ms, max. frequency 18 Hz model 11: < 100 μs, max. frequency 1 kHzAccuracy : ≤ 0.2 % (single range adjustment ≤ 0.1 %) Case Design : standard case, Makrolon 8020 UL94V-1acc. to DIN EN 60715 Weight : approx. 200 g Connection : screw terminals, max. 2.5 mm²Protection class : case IP30, terminals IP20 acc. to BGV A3pi-ma-TVST500_E V1.02-00Ordering code 1.2.-1.2.3.3.-Model TV500 signal converter ST500 power feed signal converter Measuring range10 inputs 0/4..20 mA and 0/2..10 V outputs 0/4..20 mA and 0/2..10 V 11 as 10, but rise time T90 < 100 µSSupply voltage 0 100..265 V AC 5 10.8..30 V AC/DC1
