Holmatro TB 2530 Traversing Bed

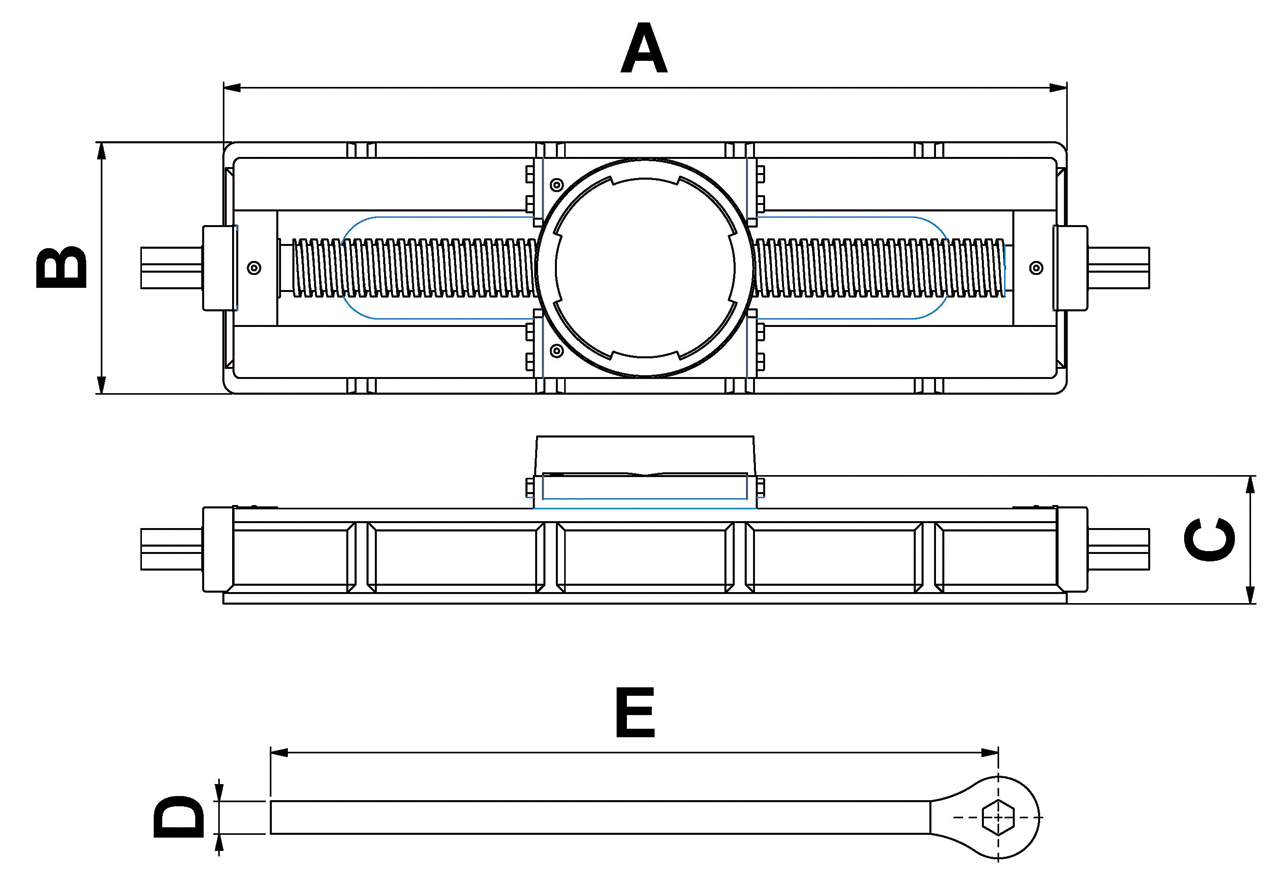

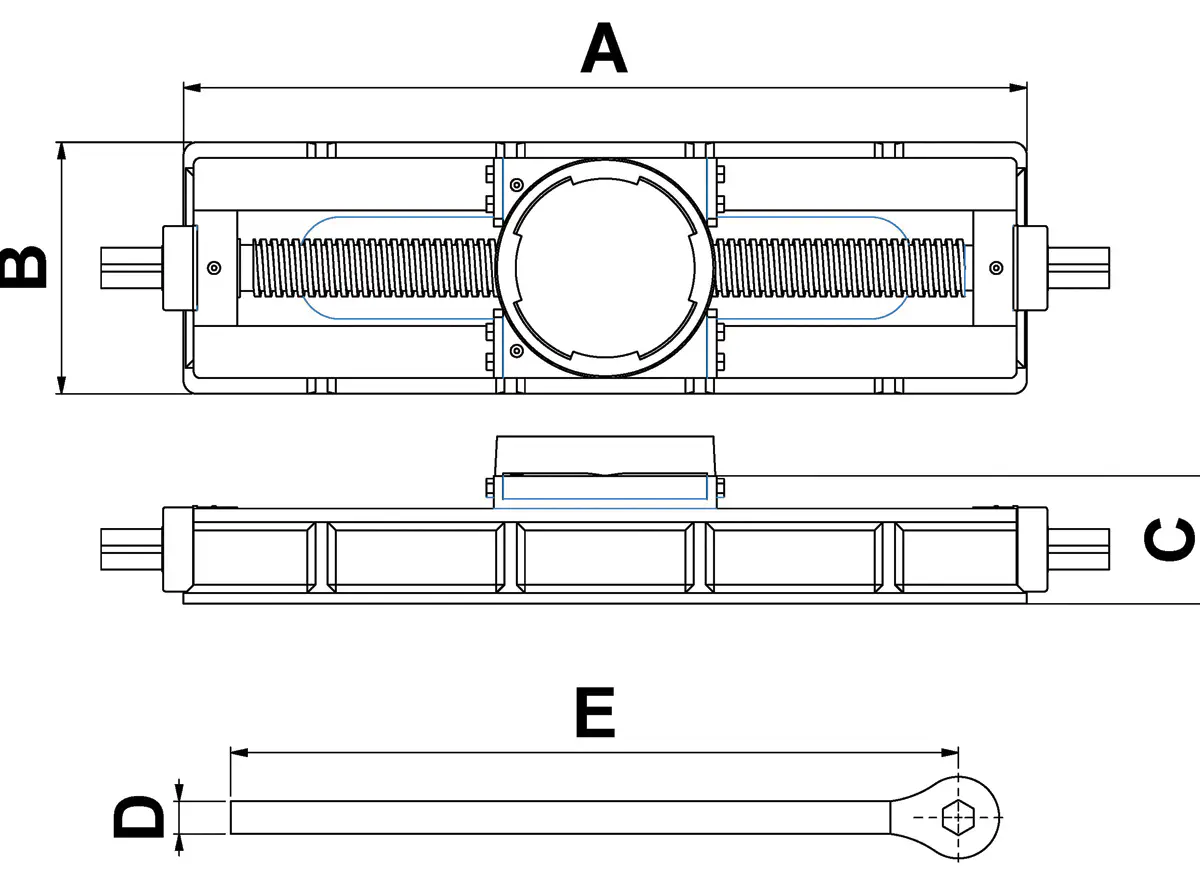

Technical specification sheetTB 2530 | Traversing Bed Specifications article number200.102.010modelTB 2530suitable for jackJJ 25**short descriptionTraversing Bedmax. horizontal displacementmm300weight, ready for usekg25.0dimension Amm470dimension Bmm185dimension Cmm90dimension Dmm30dimension Emm600Technical drawing dimensionsholmatro.com © Holmatro 2025-10-02 While the greatest care has been devoted to the content, it is possible that the information in this printed matter is incorrect or incomplete. Holmatro B.V. and its affiliated companies (hereafter: Holmatro) cannotbe held liable in any way for the consequences of activities undertaken on the basis of this printed matter. Values can vary within the manufacturer measurements. If you have any doubts about the correctness orcompleteness of the information, you shall contact Holmatro (T +31 (0)162-751480). Nothing from this printed matter can be copied and/or made public in any way without the explicit authorisation of Holmatro.
