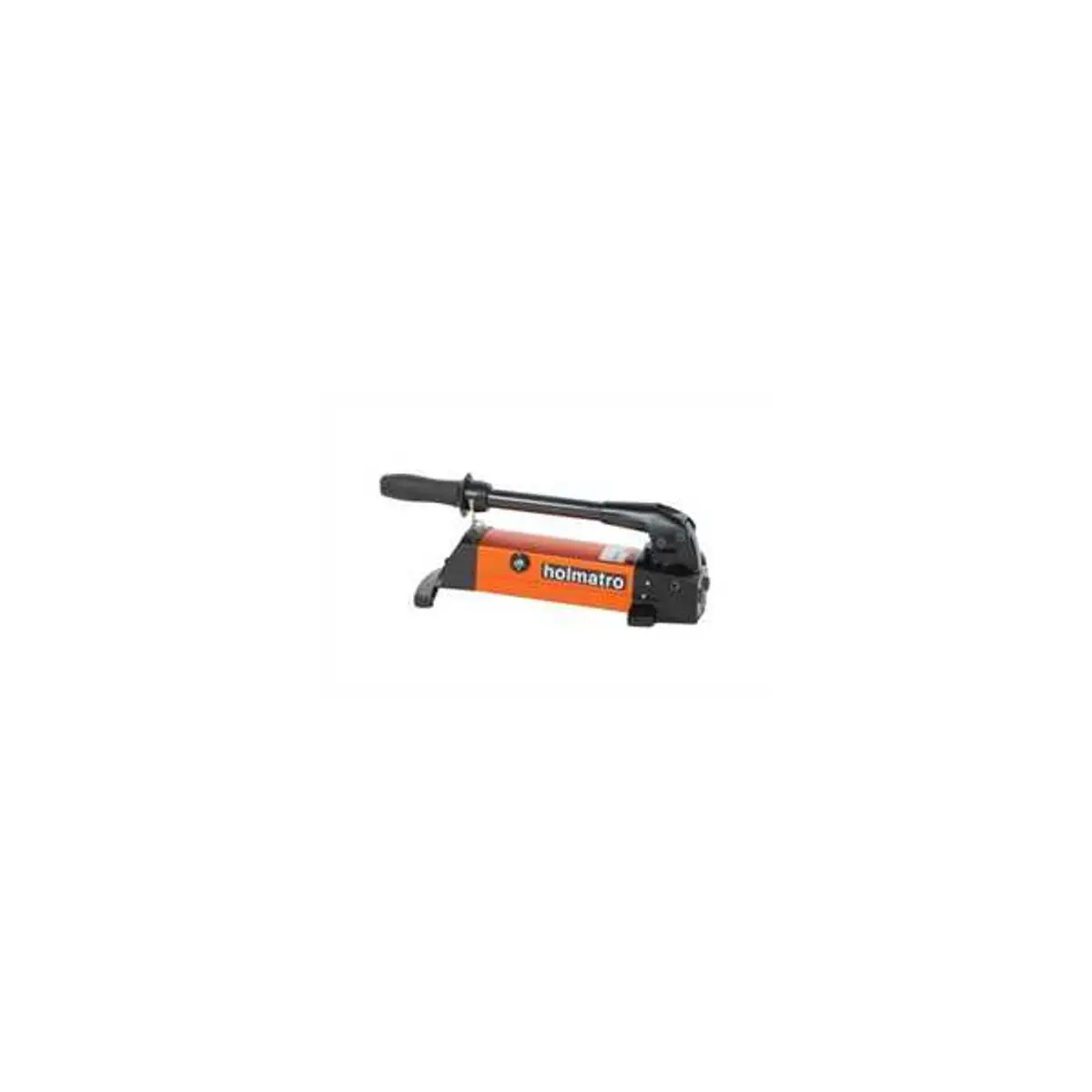

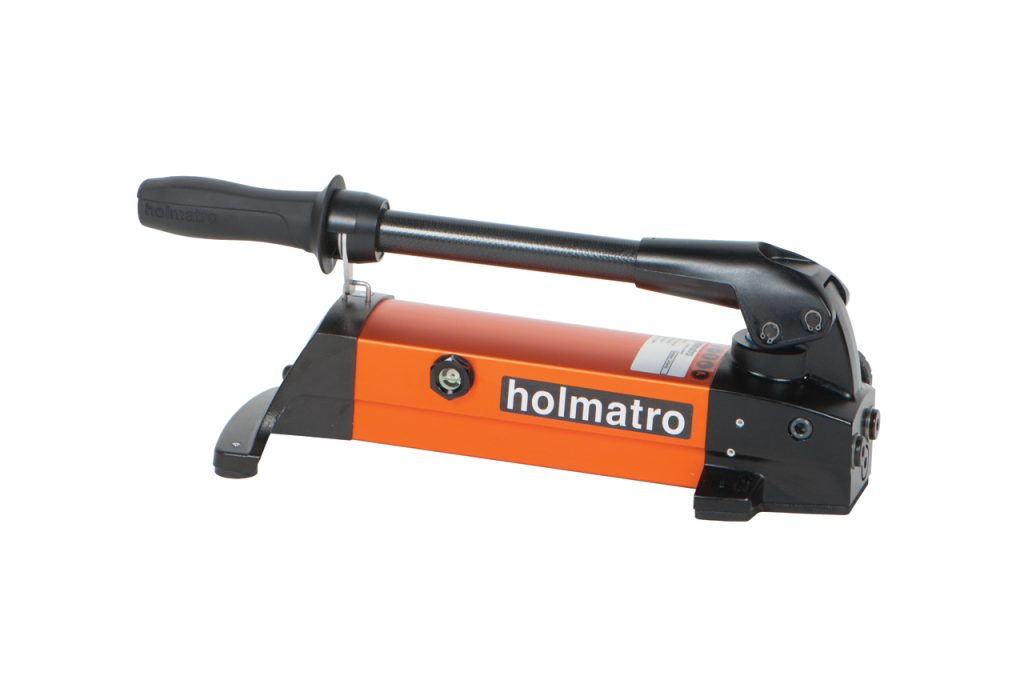

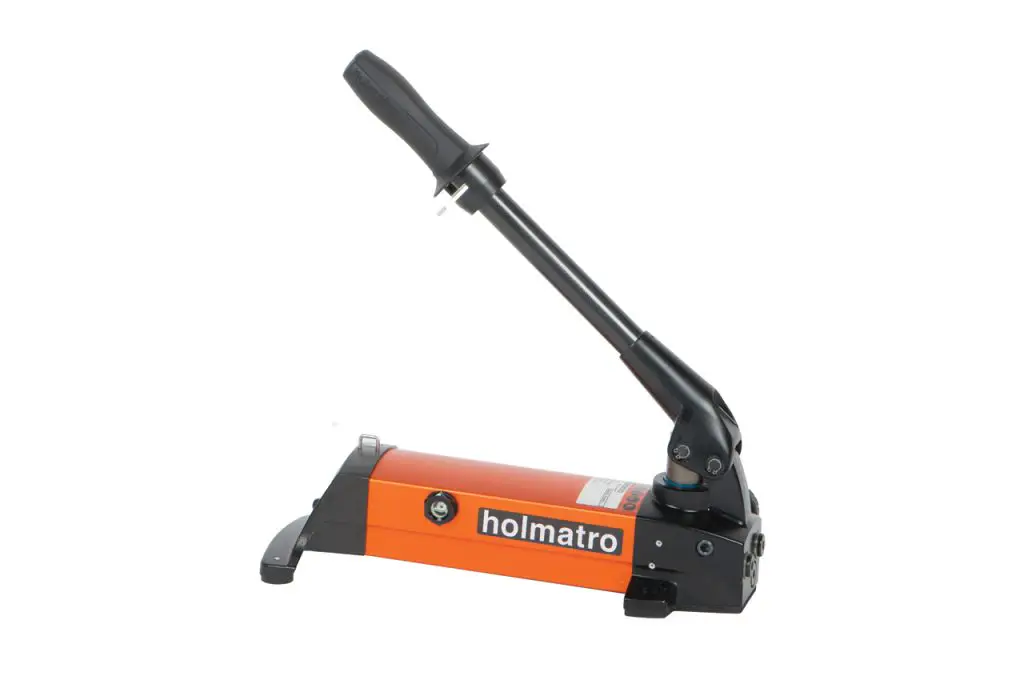

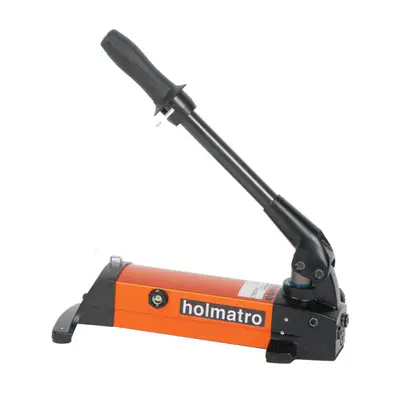

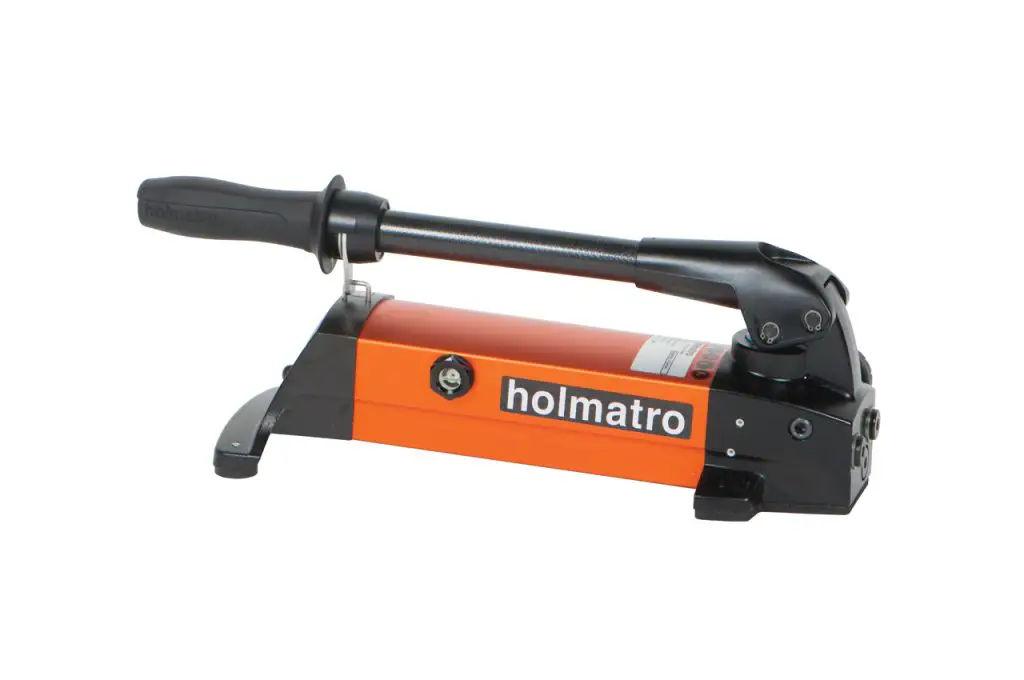

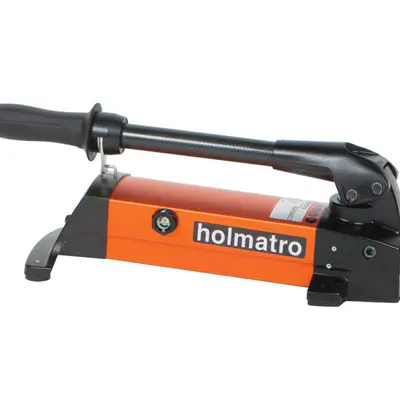

Holmatro PA 04 H2 Hand Pump

Technical specification sheetPA 04 H 2 | Hand Pump Specifications article number100.142.033short descriptionHand PumpmodelPA 04 H 2max. working pressurebar/Mpa720 / 72capacity oil tank (effective)cc400capacity oil tankcc500number of stages2first stage output (per stroke)cc18.4second stage output (per stroke)cc1.4first stage pressure rangebar/Mpa0 - 45 / 0 - 4.5second stage pressure rangebar/Mpa45 - 720 / 4.5 - 72max. operating forcekg32.0connection3/8” NPT femaleoperator typehanddouble acting optional weight, ready for useno kg3.4dimension Amm434dimension Bmm135dimension Cmm165Technical drawing dimensionsholmatro.com © Holmatro 2025-09-30 While the greatest care has been devoted to the content, it is possible that the information in this printed matter is incorrect or incomplete. Holmatro B.V. and its affiliated companies (hereafter: Holmatro) cannotbe held liable in any way for the consequences of activities undertaken on the basis of this printed matter. Values can vary within the manufacturer measurements. If you have any doubts about the correctness orcompleteness of the information, you shall contact Holmatro (T +31 (0)162-751480). Nothing from this printed matter can be copied and/or made public in any way without the explicit authorisation of Holmatro.
