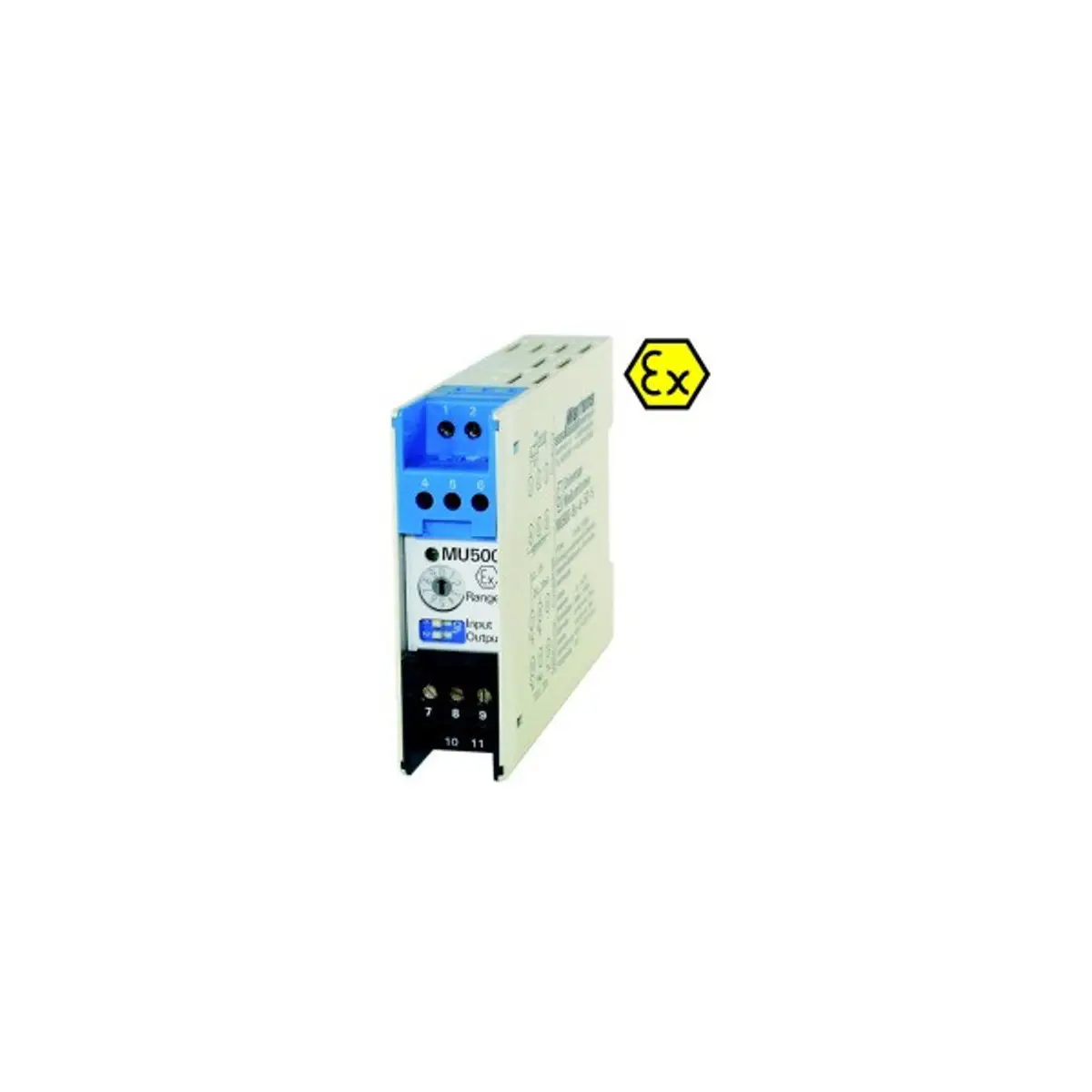

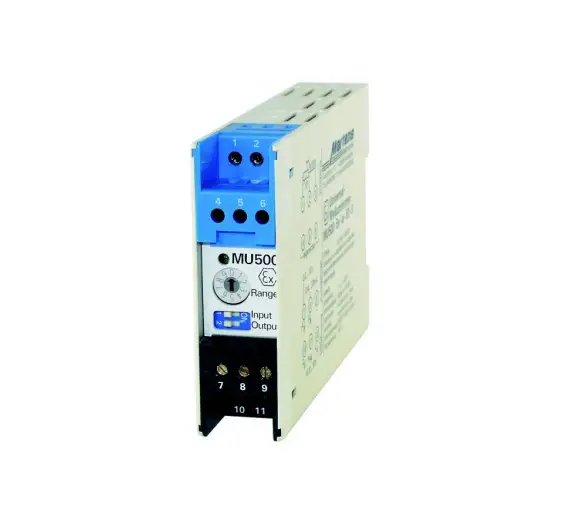

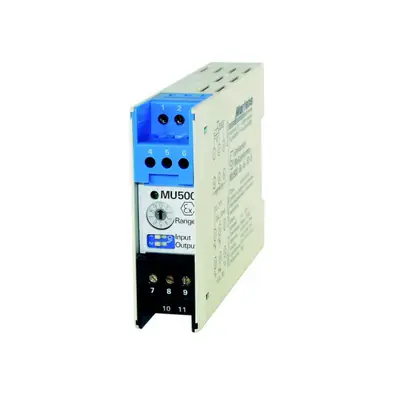

Senseca MU500EX-51-5 Temperature Transmitter

Senseca Germany GmbH Tenter Weg 2-8 | 42897 Remscheid | GERMANY Phone +49 2191 9672-0 | info(at)senseca.comProduktinformation Outputs CurrentUniversal Transmitter MU500Ex: 0/4..20 mA DC switch selectable, burden ≤ 1 kΩ : 0/2..10 V DC switch selectable,load max. 15 mA , short-circuit-proof (simultaneously with current output5 mA) : 253 V AC or 125 V DC (Um) acc. to EN 60079-0 : ≤ 0.2 % : Polycarbonate UL94V-0TS 35 : approx. 200 g : case IP30, terminals IP20 (BGV A3) : screw terminals with pressure platemax. 2.5 mm² : installation in dry, clean and well monitored areasVoltageRated voltage Accuracy Case Weight Protection class Connection MountingDimensionsCharacteristics Temperature transmitters series MU500-Ex offer an intrinsicallysafe input and convert RTD sensor signals (Pt100 or Pt1000) into industry standard signals. The device includes a full 3-port isolation.Technical dataAdjustment Start value End valuePower supply Supply voltage: 85..253 V AC/110..125 V DC 10..30 V AC/DC Frequency AC : 40..400 Hz Power consumption: < 3.3 VA Operating temperature : -10..+60 °C CE-conformity : ATEX-Richtlinie 2014/34/EUStandards : EN 60079-0:2006, EN 60079-11:2007EN 61241-0:2006, EN 61241-11:2006 EMC-directive / : 2014/30/EU / EN 61326-1:2013standard Explosion protection Approval : TÜV 03 ATEX 2283, Marking : II (1) G [Ex ia Ga] IIC orII (1) D [Ex ia Da] IIIC U0 I0 P0 C0 MU500Ex- … -51 : 1.3 V <3mA <3mW 29µFMU500Ex- … -53 : 4.9 V <3mA <3mW 2.2µF Ci, Li : 5 nF, ca. 0 mHL0 100mH 100mHThe intrinsically safe circuit is galvanically separated from the nonintrinsically safe circuits up to a peak crest value of the voltage of375 V.Measuring input Sensor current : Pt100 approx 1 mA, Pt1000 approx. 0.25 mALine resistance : max. 100 Ω, automatic compensation with 3-wire connectionZero adjust : Pt100 approx. ± 8 Ω, ( ≙ 20 °C) Pt1000 approx. ± 8 Ω ( ≙ 2 °C)End value : approx. +/-20 % adjustable Sensor error : output rises to max. output(voltage output >12V DC current output > 25 mA)pi-ma-MU500Ex_E V3.01-00Connection diagramOrdering code 1.MU500Ex 1.2.3.2.-3.-Device type 51 Pt100, 13 measuring ranges 53 Pt1000, 16 measuring rangesSupply voltage 0 85..253 V AC/110..125 V DC 5 10..30 V AC/DC Options 00 without option1
