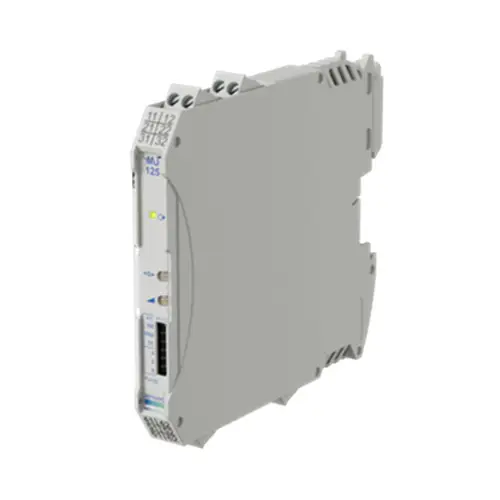

Senseca MU125L-01 Temperature Converter Mu125

Senseca Germany GmbH Tenter Weg 2-8 | 42897 Remscheid | GERMANY Phone +49 2191 9672-0 | info(at)senseca.comProduktinformationTemperature Measuring Transducer MU125• Universal input for Pt100, Pt1000, thermocouple, NTC and resistance measurement value• Configuration via front DIP switches• Analog actual value output 4 .. 20mA• Zero point and limit value can be adjusted via trim potentiometers on the front• With Pt100 and Pt1000 sensors, monitoring of sensor break and short-circuit• Wide-range mains adapter or 24 V DCa• Optional supply via carrier rail bus• Removable coded screw terminals or optional push-in terminals• Housing width 12.5 mm• Carrier rail mounting TS35 EN60715Characteristics Devices of the MU125 series convert a temperature measurement value or resistance measurement value fromvarious sensors to a current signal of 4..20mA.The universal configurability of the measuring inputs reduces the stock requirement for various applications.The housing width of only 12.5 mm enables space-saving installation in the switch cabinet.Measurement inputs Switchable via DIP switch:Measuring range Basic precisionTemperature deviation *)Pt100-50.. 50°C 0.. 50°C 0..100°C 0..150°C 0..200°C 0..250°C 0..300°C 0..500°C0.4% 0.6% 0.4% 0.4% 0.3% 0.3% 0.2% 0.2%0.01%/K 0.02%/K 0.02%/K 0.01%/K 0.01%/K 0.01%/K 0.005%/K 0.005%/KPt1000-50.. 50°C -30.. 70°C -20.. 40°C 0.. 50°C 0..100°C 0..150°C 0..200°C 0..250°C0.4% 0.4% 0.4% 0.6% 0.4% 0.4% 0.3% 0.3%0.01%/K 0.01%/K 0.01%/K 0.02%/K 0.02%/K 0.01%/K 0.01%/K 0.005%/KFeCuNi0..250°C 0..500°C1.0% 0.5%0.04%/K 0.03%/KNiCrNi-50..250°C 0..500°C 0..750°C 0..1000°C 0..1250°C0.7% 0.5% 0.4% 0.3% 0.3%0.05%/K 0.04%/K 0.03%/K 0.02%/K 0.02%/KPtRhPt0..1500°C1.0%0.04%/KNTC R25=10kΩ B25/85=3977K NTC R25=10kΩ B25/85=3977K NTC R25=2kΩ B25/85=3528K0..100°C1.0%0.01%/K-20.. 50°C1.5%0.01%/K0.. 100°C1.0%0.01%/KResistance linear**)0.. 2kΩ 0.3% 0.005%/K 0.. 5kΩ 0.5% 0.01%/K 0..10kΩ 0.3% 0.005%/K *) Measurement deviation depending on the environmentaltemperature in the switch cabinet (-10..+60°C) **) Adjusting zero point and limit value via the integrated trimpotentiometers makes it possible to also connect KTY sensors for these measuring ranges. The linearisation must then beaccomplished with the help of a parallel resistor.(Special measurement ranges available on request)1 pi-ma-MU125_E V1.03-03
