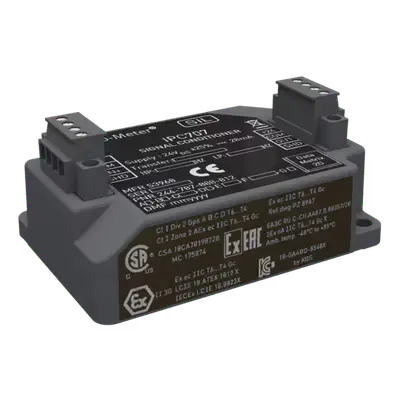

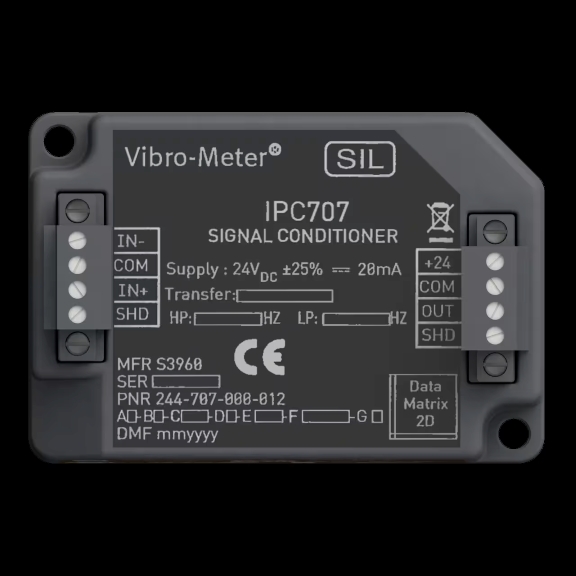

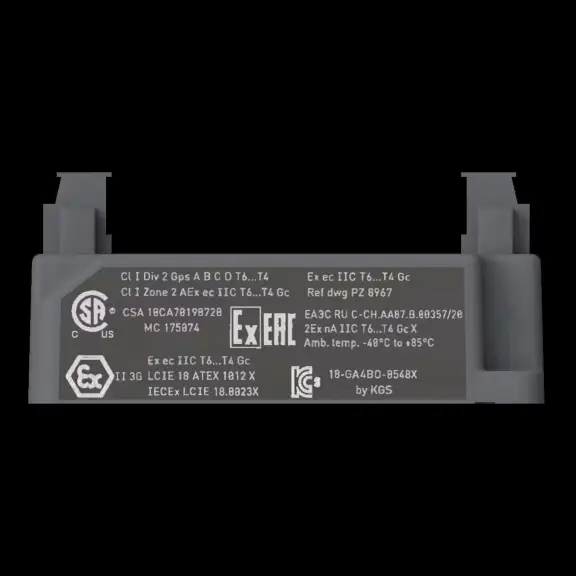

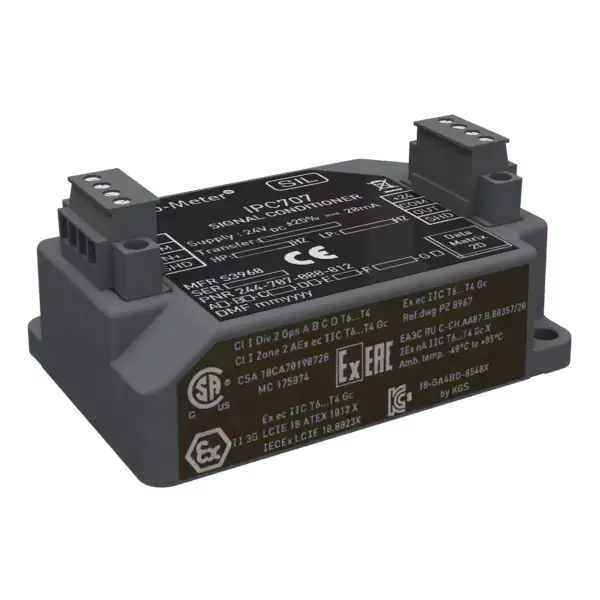

SPECIFICATIONS (continued) Filter characteristics High-pass filter (ordering option code E)Type : 3rd order Butterworth high-pass (HP) filter Cutoff frequency (−3 dB)• Standard values without diagnostics : 0.5, 1, 2, 5, 10 or 20 Hz• Standard values with diagnostics : 1, 2, 5, 10 or 20 Hz• Non-standard values without :0.5 to 110 Hz diagnostics• Non-standard values with diagnostics : 1 to 110 Hz Contact Parker Meggitt for information on non-standard values.Slope Accuracy• < 5 Hz: −60 dB/decade (−18 dB/octave) min.: For a high-pass filter < 5 Hz, the cutoff frequency (−3 dB) has an accuracy of ± 20 % over the whole temperature range• ≥ 5 Hz : For a high-pass filter ≥ 5 Hz, the filter attenuation is compliant withthe ISO 2954 standard over the whole temperature range Note: The IPC707 high-pass filter is not affected by the transfer function and can be configured independently.Low-pass filter (ordering option code F) Type : 3rd order Butterworth low-pass (LP) filterCutoff frequency (−3 dB)• Standard values : 500, 1 000, 2 000, 5 000, 10 000 or 20 000 Hz• Non-standard values : 200 to 20 000 Hz Contact Parker Meggitt for information on non-standard values.Slope Accuracy• > 2 000 Hz• ≤ 2 000 Hz: −60 dB/decade (−18 dB/octave) min.: For a low-pass filter > 2 000 Hz, the cutoff frequency (−3 dB) has an accuracy of ± 10 % over the whole temperature range: For a low-pass filter ≤ 2 000 Hz, the filter attenuation is compliant withthe ISO 2954 standard over the whole temperature rangeConnectors Screw-terminal connector (input) Screw-terminal connector (output)Electrical connections• IEC• UL• Clamping range (min. to max.)• Tightening torque (min. to max.): 4 contacts for sensor-side signals : 4 contacts for monitor-side signals::::320 V / 17.5 A / 0.2 to 1.5 mm2 300 V / 10 A / 28 to 16 AWG 0.2 to 1.5 mm2 (28 to 16 AWG)0.2 to 0.25 N•m (0.15 to 0.18 lb-ft) for conductor screws.0.2 to 0.3 N•m (0.15 to 0.22 lb-ft) for mounting-flange screws.Note: The IPC707 features removal screw-terminal connectors that can unplugged from the main body of its housing tosimplify installation and mounting.IPC707 signal conditioner data sheet Document reference DS 262-712Version 12 – 02.09.2024 Page 11 of 15
