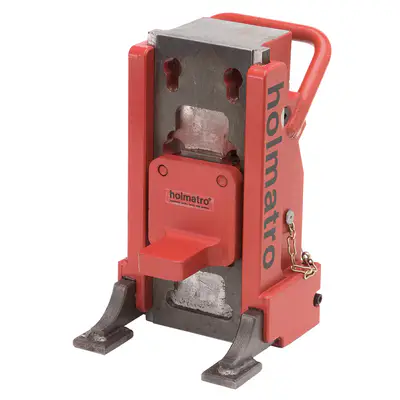

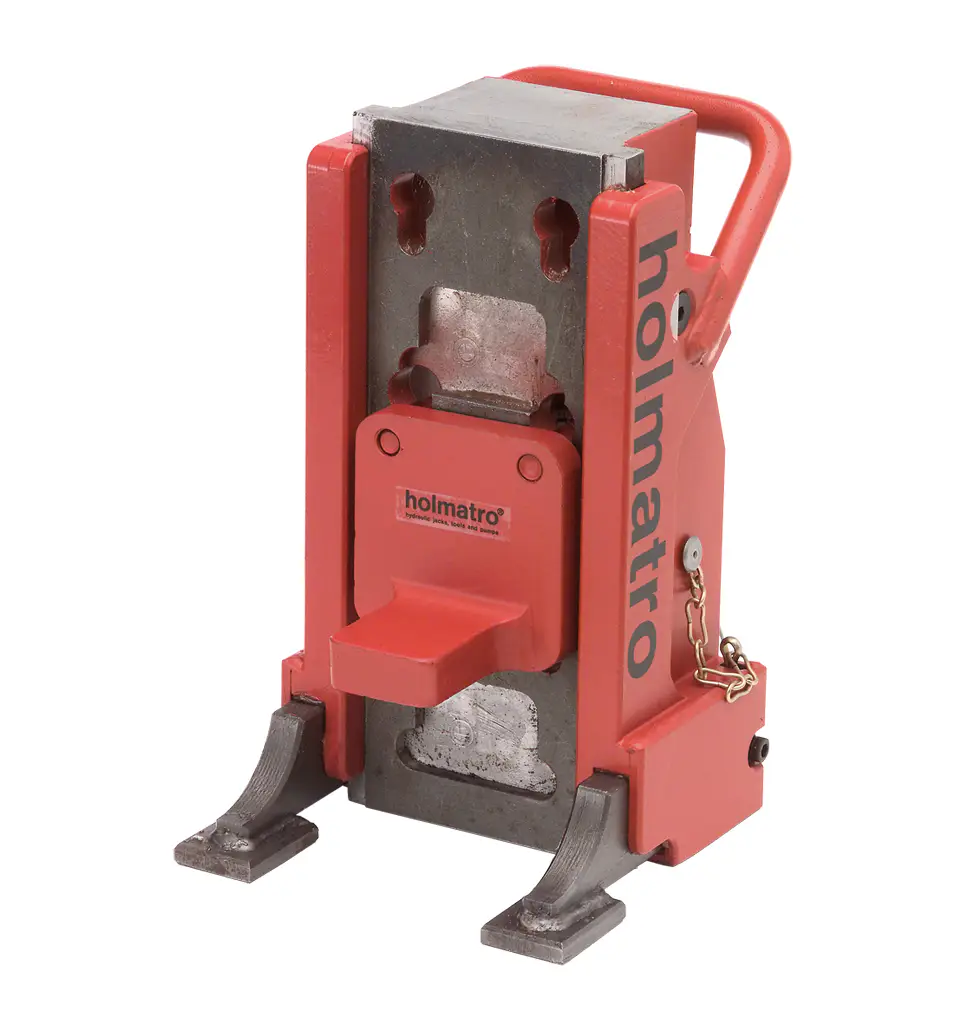

Holmatro HMJ 10 S 15 Mechanical Toe Jack

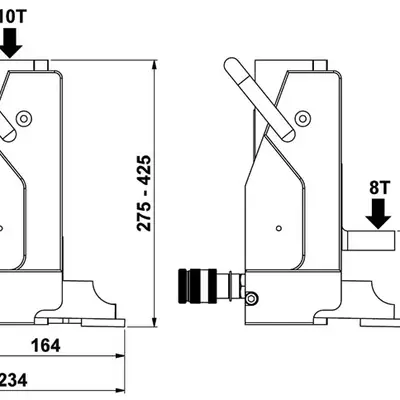

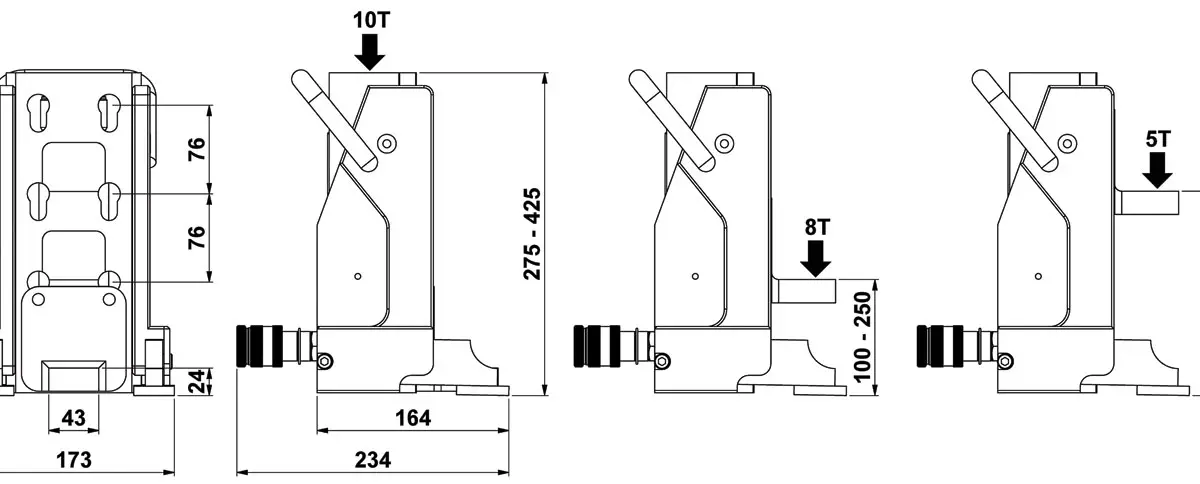

Technical specification sheetHMJ 10 S 15 | Toe Jack Specifications article number100.062.004short descriptionToe JackmodelHMJ 10 S 15max. working pressurebar/Mpa720 / 72tonnaget10strokemm145closed heightmm275capacity (head)kN/t100 / 10.2capacity (toe), min.kN/t49 / 5capacity (toe), max.kN/t78.5 / 8required oil content (effective)cc208connectionA 118cylinder typemachine liftreturn typespringweight, ready for usekg18.5holmatro.com © Holmatro 2025-09-26 While the greatest care has been devoted to the content, it is possible that the information in this printed matter is incorrect or incomplete. Holmatro B.V. and its affiliated companies (hereafter: Holmatro) cannotbe held liable in any way for the consequences of activities undertaken on the basis of this printed matter. Values can vary within the manufacturer measurements. If you have any doubts about the correctness orcompleteness of the information, you shall contact Holmatro (T +31 (0)162-751480). Nothing from this printed matter can be copied and/or made public in any way without the explicit authorisation of Holmatro.
