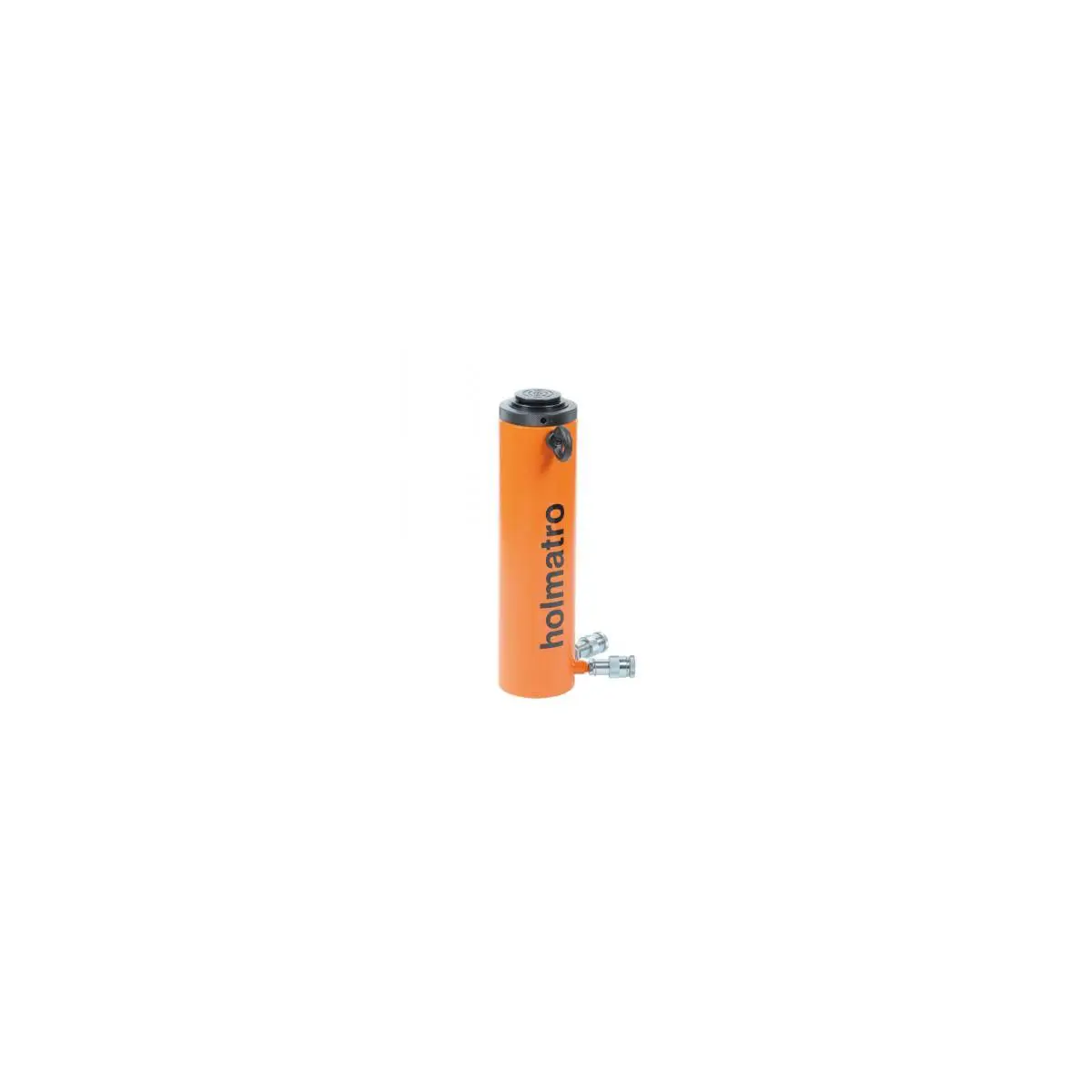

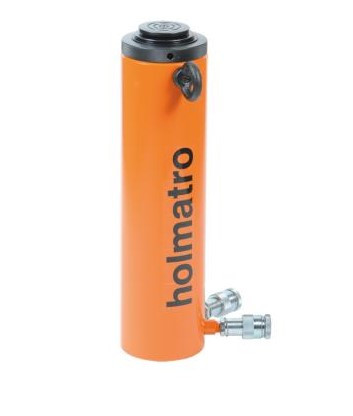

Holmatro Locknut 30 50 HLC H Cylinder

LOCKNUT CYLINDER HLC 50 H 30LOCKNUT CYLINDER HLC 50 H 30Double-acting locknut cylinder with locknut on plunger for mechanical load locking. The cylinder has an extreme low closed height because of the smart return-plunger. Standard with tilting saddle.Standard supplied with:• High Flow female coupler A 118• Tilting saddleDetailsArticlenumber100.122.125Basic specificationsmodelHLC 50 H 30max. working pressure720 / 72 (bar/Mpa)10443 psiPerformancetonnage60 t132277 lbstroke300 mm11.8 inclosed height498 mm19.6 incapacity578 kN / 58.9 t / 578 / 58.9 (kN/t)129940 lbfeffective pressure area (press)80.3 cm212.4 sq. in.effective pressure area (retract)16.7 cm22.6 sq. in.max. side-load resistance10 %General specificationsrequired oil content (effective)1909 cc64.6 ozacting typedoublereturn typehydraulicmaterialsteelcylinder typelock nutconnectionA 118Dimensions, weight and temperatureweight, ready for use44 kg97 lbTechnical drawing dimensionsdimension A498 mm19.6 indimension B130 mm5.1 indimension C170 mm2.8 indimension C255 mm2.2 indimension D75 mm3 indimension E39 mm1.5 indimension F460 mm18.1 indimension P58 mm2.3 indimension T260 mm10.2 indimension U54 mm2.1 inangle A123 °angle A290 °NormsASMEB30.1
