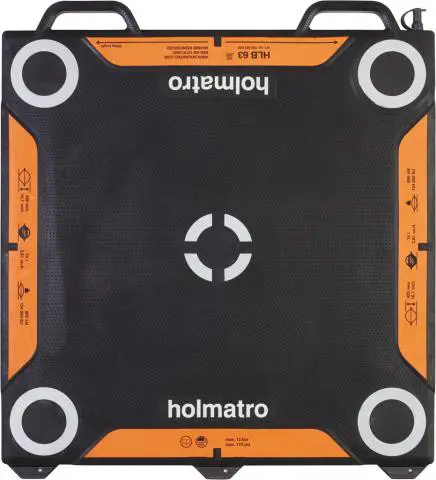

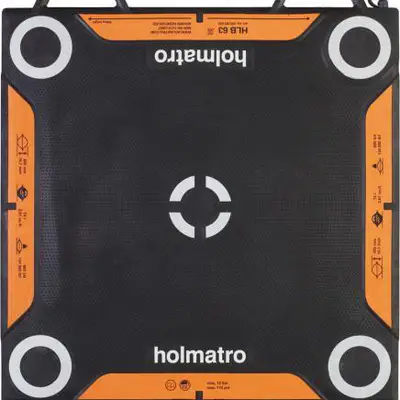

Holmatro Lifting Bag HLB 63

Lifting BagLIFTING BAG HLB 63High-pressure lifting bag, 12 bar / 174 psi system. Designed for maximum safety and control when lifting heavy objects. Offers 50% more lifting capacity: get more power out of your lifting bag or use a smaller and lighter model to get the job done.Standard supplied with:• Integrated carrying handle with capacity indication• Slider pads to facilitate lifting bag placement• Inserts for optional lifting eyes• Flexible integrated dust cap on air inletDetailsArticlenumber350.321.032Basic specificationsmodelHLB 63max. working pressure12 / 1.2 (bar/Mpa)174 psiPerformancemax. lifting capacity620 / 63.2 (kN/t)139382 lbfmax. inflation height456 mm18 inthickness incl. profile27 mm1.1 inmax. lifting capacity (12 bar/174 psi)620 / 63.2 (kN/t)139382 lbfmax. lifting capacity (8 bar/116 psi)413 / 42.1 (kN/t)92846 lbfGeneral specificationsmaterialreinforced with 3 aramide inlaysair content (8 bar/116 psi)592 l156.4 gal / 20.9 cu ftmin. bursting pressure696 psiconnectionISO 6150 Cair content (12 bar/174 psi)884 l233.5 gal / 31.2 cu ftwater content74 l19.5 gal / 2.6 cu ftDimensions, weight and temperatureweight, ready for use17 kg37.5 lbthread holeM6 threadsizetemperature range-20 + 55 °C-4 + 131 °Fdimensions (AxBxC)827 x 750 x 27 mm32.6 x 29.5 x 1.1 inNormsEN-13731Yes
