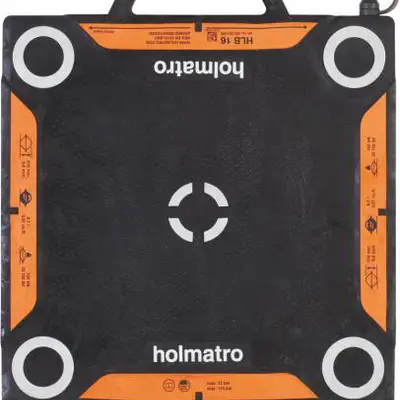

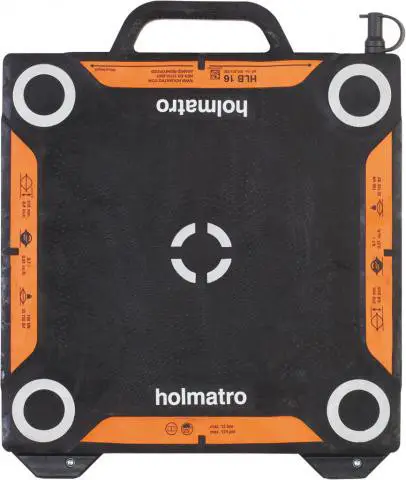

Holmatro 16 Lifting Bag HLB

Lifting BagLIFTING BAG HLB 16High-pressure lifting bag, 12 bar / 174 psi system. Designed for maximum safety and control when lifting heavy objects. Offers 50% more lifting capacity: get more power out of your lifting bag or use a smaller and lighter model to get the job done.Standard supplied with:• Integrated carrying handle with capacity indication• Slider pads to facilitate lifting bag placement• Flexible integrated dust cap on air inletDetailsArticlenumber350.321.026Basic specificationsmodelHLB 16max. working pressure12 / 1.2 (bar/Mpa)174 psiPerformancemax. lifting capacity155 / 15.8 (kN/t)34845 lbfmax. inflation height236 mm9.3 inthickness incl. profile25 mm1 inmax. lifting capacity (12 bar/174 psi)155 / 15.8 (kN/t)34845 lbfmax. lifting capacity (8 bar/116 psi)103 / 10.5 (kN/t)23155 lbfGeneral specificationsmaterialreinforced with 3 aramide inlaysair content (8 bar/116 psi)69.6 l18.4 gal / 2.5 cu ftmin. bursting pressure696 psiconnectionISO 6150 Cair content (12 bar/174 psi)104.4 l27.6 gal / 3.7 cu ftwater content8.7 l2.3 gal / 0.3 cu ftDimensions, weight and temperatureweight, ready for use4.5 kg9.9 lbtemperature range-20 + 55 °C-4 + 131 °Fdimensions (AxBxC)467 x 390 x 25 mm18.4 x 15.4 x 1 inNormsEN-13731Yes
