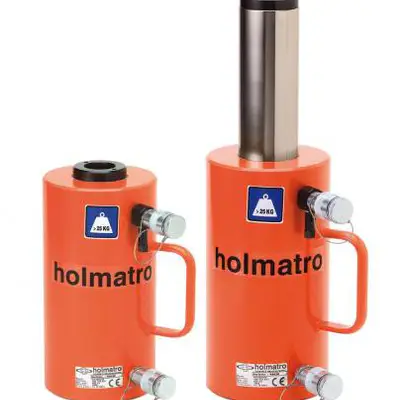

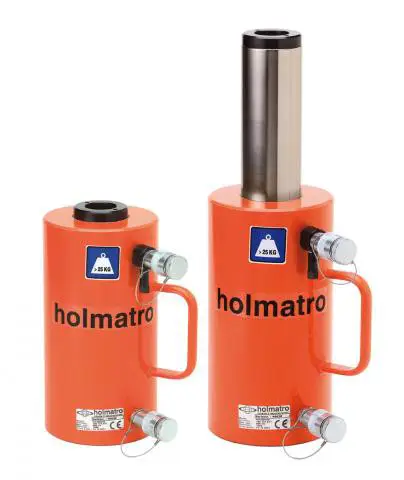

Holmatro HHJ Hollow H 100 Plunger 10 Cylinder

Hollow Plunger CylinderHOLLOW PLUNGER CYLINDER HHJ 100 H 10Double acting, hydraulic return hollow plunger cylinder.Standard supplied with:• High Flow female coupler A 118 on inlet port• High Flow female coupler with pressure relief valve A 418 on outlet port• Hollow saddleDetailsArticlenumber100.122.051Basic specificationsmodelHHJ 100 H 10max. working pressure720 / 72 (bar/Mpa)10443 psiPerformancetonnage100 t220462 lbstroke100 mm3.9 inclosed height265 mm10.4 incapacity (press)1018.5 kN / 103.9 t / 1018.5 / 103.9 (kN/t)228968 lbfcapacity (retract)706.9 kN / 72.1 t / 706.9 / 72.1 (kN/t)158917 lbfeffective pressure area (press)141.5 cm221.9 sq. in.effective pressure area (retract)98.2 cm215.2 sq. in.General specificationsrequired oil content (press)1415 cc47.8 ozrequired oil content (retract)982 cc33.2 ozacting typedoublereturn typehydraulicmaterialsteelcylinder typehollow plungerconnectionA 118Dimensions, weight and temperatureweight, ready for use53 kg116.8 lbTechnical drawing dimensionsdimension A265 mm10.4 indimension B210 mm8.3 indimension C100 mm3.9 indimension D170 mm2.8 indimension D285 mm3.3 indimension E52 mm2 indimension F245 mm9.6 inI typeI-1dimension P55 mm2.2 indimension R54 mm2.1 indimension SM72x2 threadsize
