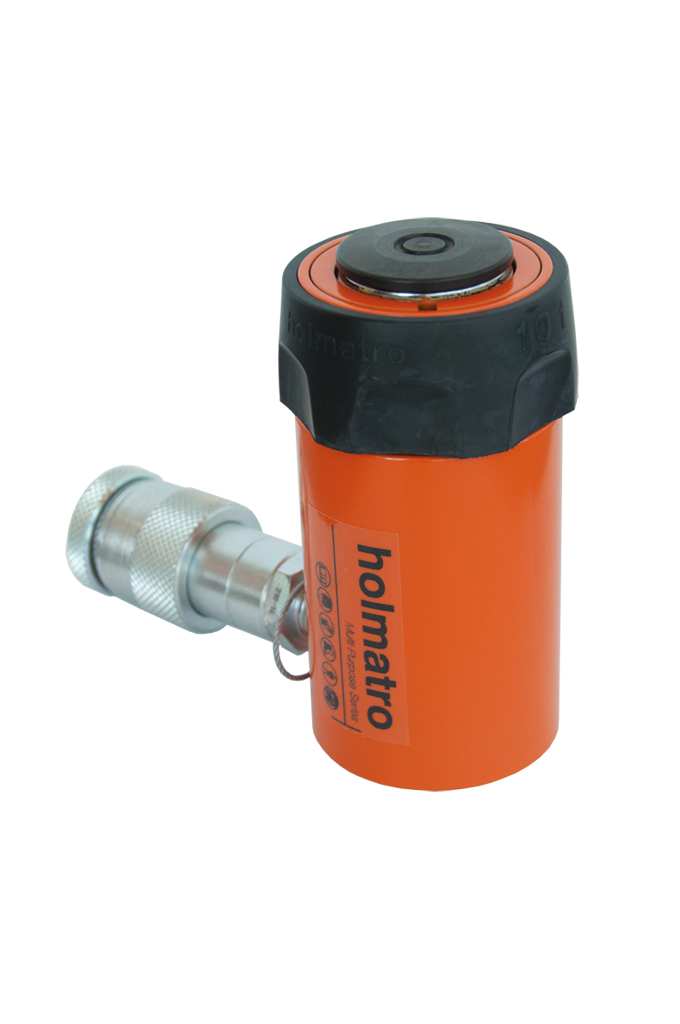

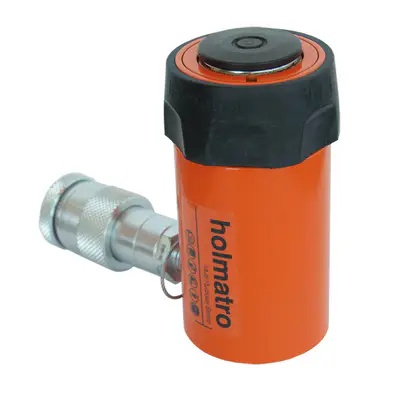

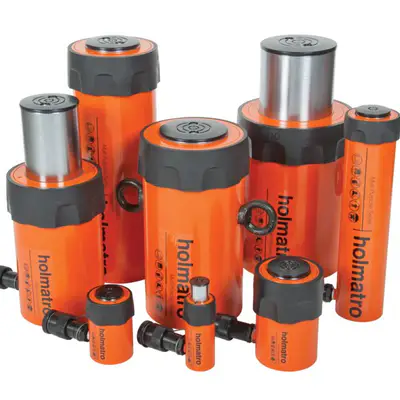

Holmatro 15 Purpose Multi S 2.5 HGC Cylinder

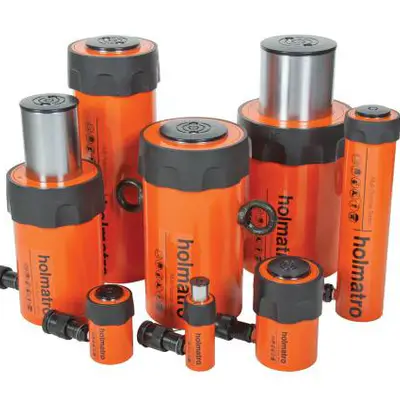

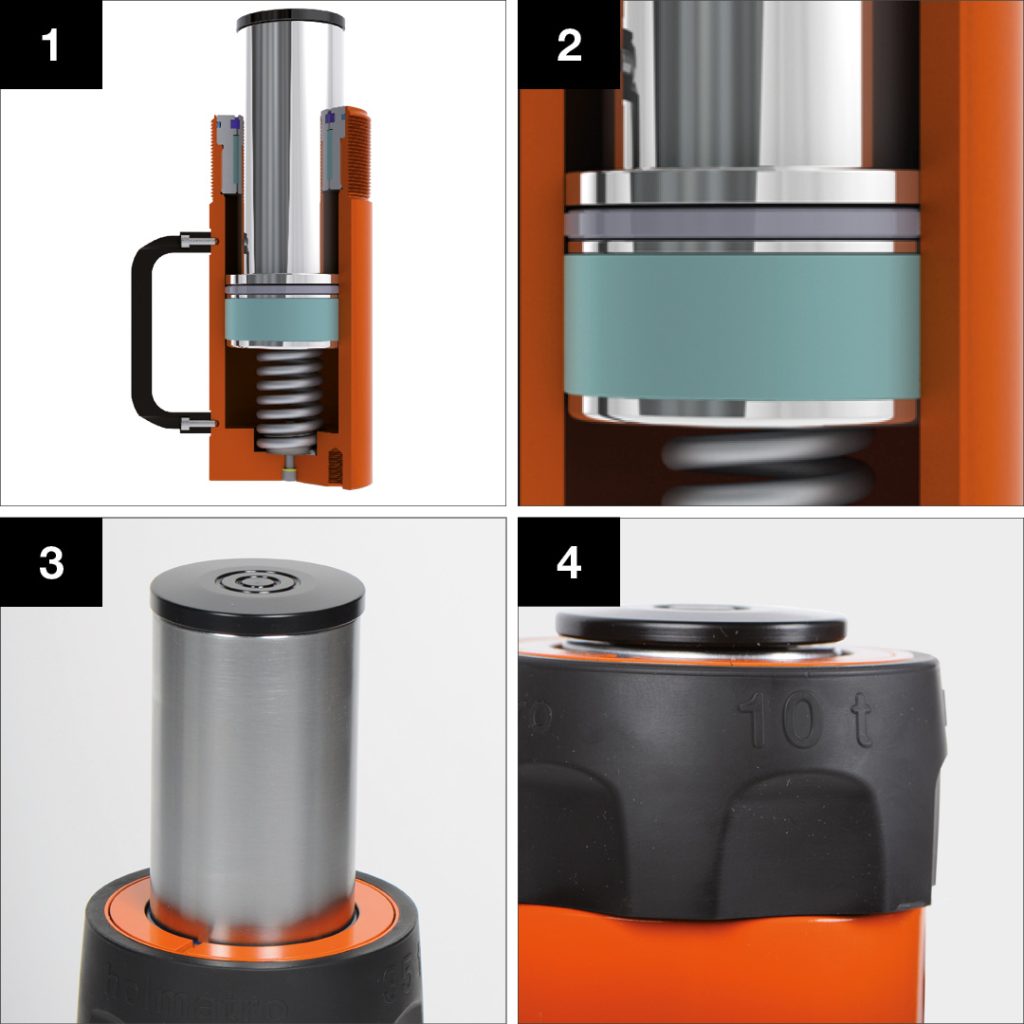

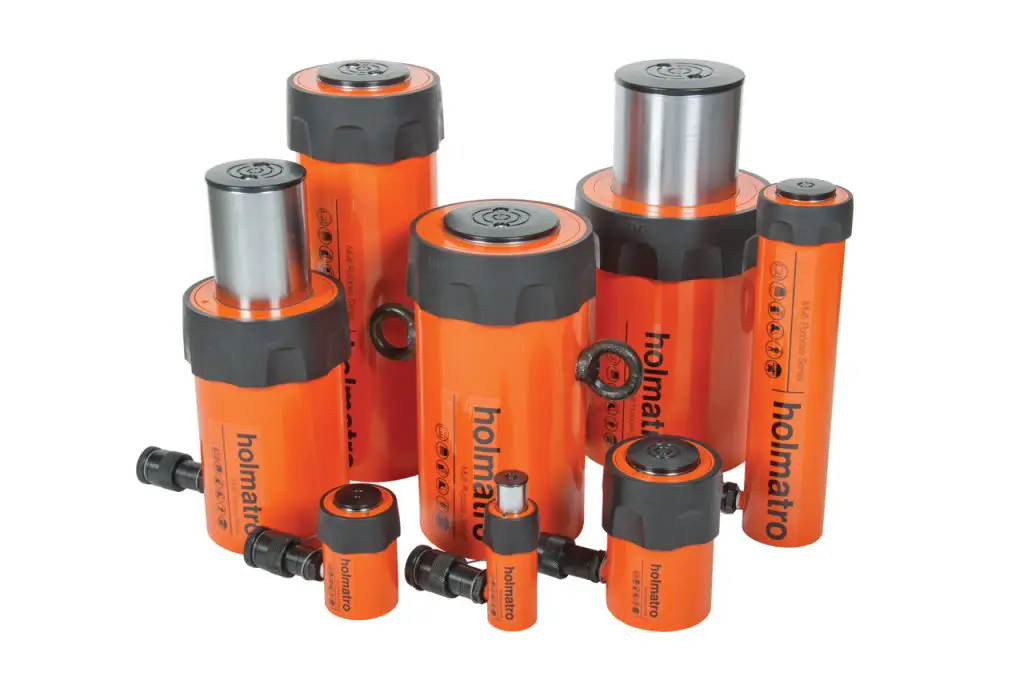

Holmatro products, including Holmatro HGC 15 S 2.5 Multi Purpose Cylinder, are sourced through parallel import channels and delivered to our customers worldwide with speed and reliability. Even if Holmatro HGC 15 S 2.5 Multi Purpose Cylinder is not listed on our website, you are welcome to request a price quote — our team will respond promptly with a tailored offer.CYLINDER HGC 15 S 2.5MULTI PURPOSE CYLINDER HGC 15 S 2.5High quality Multi Purpose Cylinder. Fitted with unique features that considerably lengthen its life span and service life. Offers appropriate solutions for the most varied applications. Holmatro Multi Purpose Cylinders come in 50 models and are available in different capacities and with different stroke lengths.Standard supplied with:• High Flow female coupler A 118• Flat saddleonnage15 t33069 lbstroke25 mm1 inclosed height123 mm4.8 incapacity171 kN / 17.4 t / 171 / 17.4 (kN/t)38442 lbfeffective pressure area23.8 cm23.7 sq. in.General specificationsrequired oil content (effective)59 cc2 ozacting typesinglereturn typespringmaterialsteelcylinder typemulti purposeconnectionA 118Dimensions, weight and temperatureweight, ready for use3.4 kg7.5 lbTechnical drawing dimensionsdimension A123 mm4.8 indimension B70 mm2.8 indimension C147 mm1.9 indimension C223 mm0.9 indimension D80 mm3.1 indimension E20 mm0.8 indimension F117 mm4.6 indimension G7 mm0.3 indimension J2¾”-16-UN threadsizedimension K31 mm1.2 indimension L1”-8-UNC threadsizedimension M27 mm1.1 indimension N48 mm1.9 indimension OM10x15 (2x) threadsizeangle A190 °NormsASMEB30.1HGC S Hydraulic Cylinder Product informationHigh quality Multi Purpose HGC S Hydraulic Cylinder fitted with unique features that considerably lengthen its life span and service life. Offersappropriate solutions for the most varied applications. Holmatro Multi Purpose Cylinders come in 50 models and are available in differentcapacities and with different stroke lengths.General:Max. working pressure: 720 bar/ 72 Mpa Acting type: single Return type: springA range of 50 models with different tonnages and stroke lengths Collar thread and base mounting holesInternal plunger thread on all models to 50 tons Duo Power Ring; seal and bearing for long life spanThread Protector protects the thread on the cylinder housingXL Saddle+ protects the plunger and limits eccentric loadsStandard supplied with:High Flow female coupler A 118 Flat saddleAvailable on request: Cylinders manufactured in conformity with customer specificationsMaterial: Steel Finish: Duplex Power Coating makes the plunger corrosion resistantPart codeCodeWLL tonstroke length mmClosed height mmrequired oil ccWeight kgDelivery time5211100112212HGC 5 S 5550130351.3205211100112213HGC 5 S 7.5575155531.520
