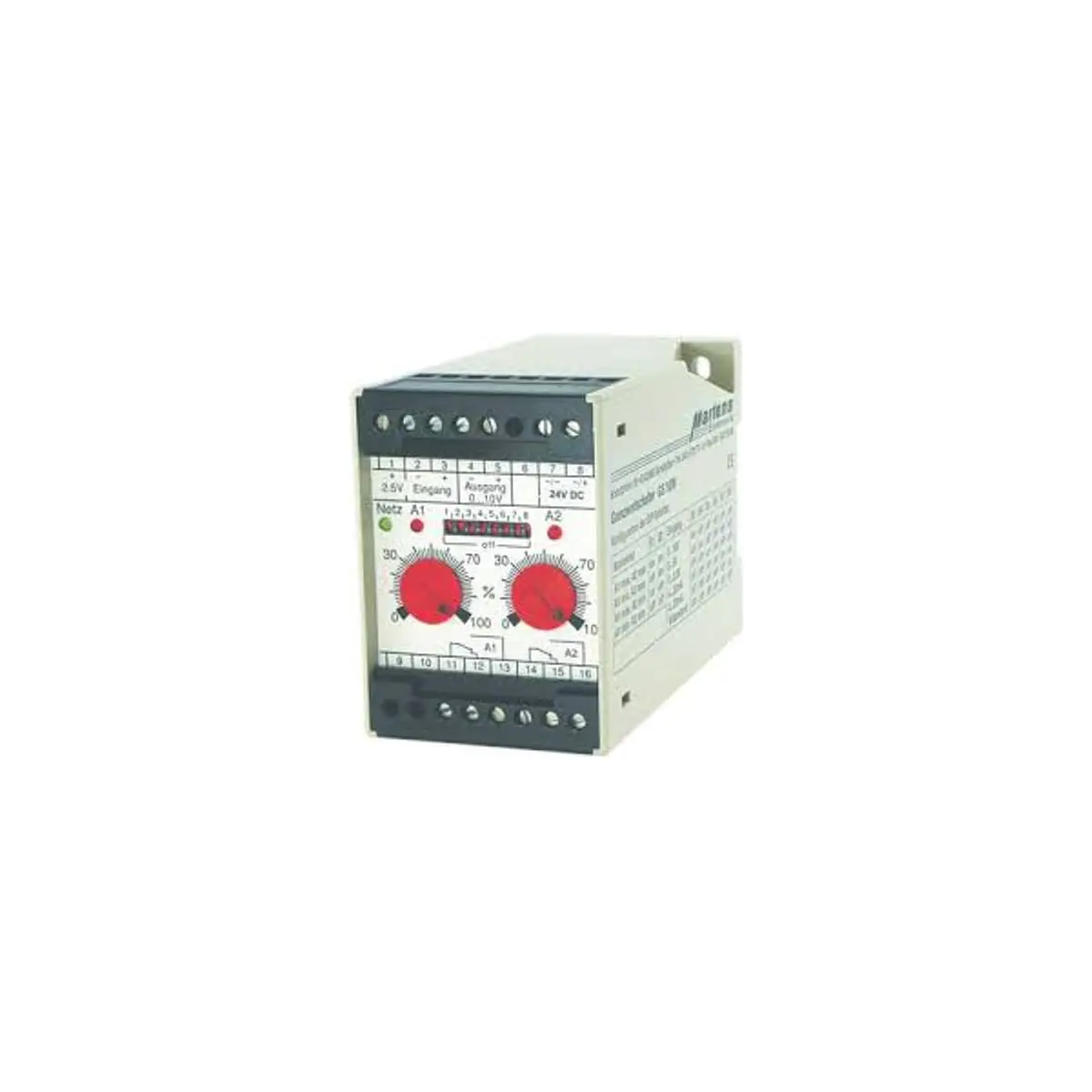

Senseca GS1000-2-1-0-63-99 Temperature/process Control

GHM-Messtechnik GmbH • Standort Martens Kiebitzhörn 18 • D-22885 Barsbüttel / Germany+49-(0)40-670 73-0 • Fax +49-(0)40-670 73-288  [email protected] • www.ghm-messtechnik.deOrdering code GS1000 -1.-2.-3.1.Limit value relays SPDT 1 1 Limit contact max. 250 V AC/2 A 2 2 Limit contacts max. 250 V AC/2 A2.True value output 1 0 ... 10 V (max. 10 mA) Standard 2 0 ... 20 mA load max 500Ω3 4 ... 20 mA load max 500Ω3.Supply voltage 0 230 V ±10 % 50-60Hz 1 115 V ±10 % 50-60Hz 4 24 V ±10 % 50-60Hz5 20 ... 28 V DC isolated-4.RTD Pt100 51 52 53 53S 54 55 56 57-50 ... 50 °C 0 ... 50 °C 0 ... 100 °C 0 ... 150 °C 0 ... 200 °C 0 ... 300 °C0 ... 400 °C 0 ... 600 °CThermo couple Fe-CuNi (J) 61 0 ... 300 °C 62 0 ... 450 °C 63 0 ... 600 °C4.Measuring input/scale 10 Multipurpose device A Measuring range programmable via DIP switch0 ... 20 mA/4 ... 20 mA/0 ... 2,5 V/0 ... 5 V/0 ... 10 V and resistance (poti)20 Multipurpose device B* Transmitter supply 16V DC for 2 wire sensors 4 ... 20 mAMeasuring range programmable via DIP switch 0 ... 20 mA/4 ... 20 mA/0 ... 2,5 V/0 ... 5 V/0 ... 10 V*Device type B not availiable with supply and 2 limit contactsThermo couple NiCr-Ni (K) 71 0 ... 600 °C 72 0 ... 900 °C 73 0 ... 1200 °CThermo couple PtRh-Pt (S) 81 0 ... 1200 °C 82 0 ... 1600 °C Custom ranges and scaleson request07/03-00 -4-
