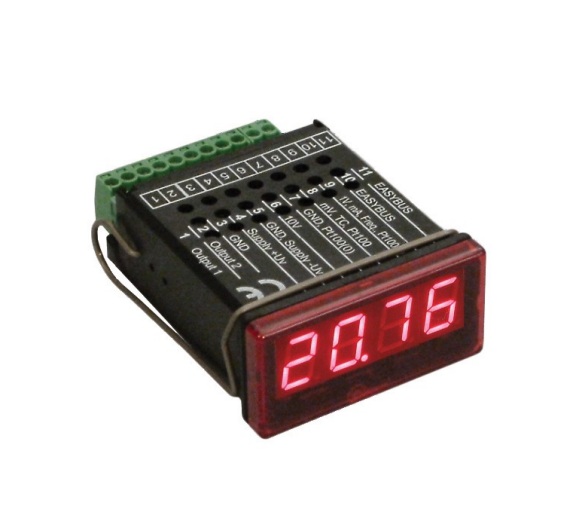

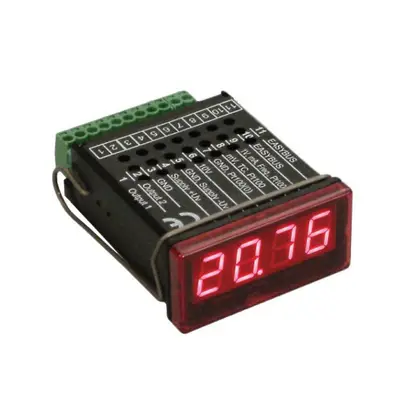

Senseca GIA20EB-028-00-00-GE Multipurpose Panel Mount Display/controller

Senseca Germany GmbH Tenter Weg 2-8 | 42897 Remscheid | GERMANY Phone +49 2191 9672-0 | info(at)senseca.comProduktinformationUniversal Measuring and Controlling DeviceGIA 20 EBThermocoupleFrequency● Universal inputs for standard signals, frequency, Pt100 / Pt1000 and thermocouples● 2 integrated switching outputs ● Self-monitoring and diagnostic system● InterfaceTechnical data Measuring inputs Design type Input signal Voltage signalCurrent signalResistanceMeasuring rangeNote0..10 V0..10 VRi ≥ 300 kOhm0..2 V0..2 VRi ≥ 10 kOhm0..1 V0..1 VRi ≥ 10 kOhm0..50 mV0..50 mVRi ≥ 10 kOhm4..20 mA4..20 mARi = ~ 125 Ohm0..20 mA0..20 mARi = ~ 125 OhmPt100-50.0..+200.0 °C3-wire connectionPt100-200..+850 °CPt1000-200..+850 °Cpi-gr-gia20eb_e V2.02-00-270.0..+1350 °CPt10Rh-Pt type S-50..+1750 °CNiCrSi-NiSi type N-270..+1300 °CFe-CuNi type J-170..+950 °CCu-CuNi type T-270..+400 °CTTL signal0..10 kHzSwitching contact NPN0..3 kHzinternal pull-up-resistor is switched onSwitching contact PNP0..1 kHzinternal pull-downresistor is switched onRotation speed TTL signal 0..9999 switching con- U/min tact NPN, PNPswitchable predistributor (1..1000), pulse frequency:max. 600000 pulses/min.Up / down counterswitchable predistributor (1..1000), pulse frequency:max. 10000 pulses/min.Characteristics The GIA 20 EB is a microprocessor-controlled displaying, monitoring and controlling device for universal use.It has a universal input for standard signals (0..20 mA, 4..20 mA, 0..50 mV, 0..1 V, 0..2 V and 0..10 V), resistance thermometers(Pt100 and Pt1000), thermocouples (type J, K, N, S and T) and frequency (TTL and switch contact). Additionally it provides functionslike rotation speed measurement or counter.The GIA 20 EB is equipped with switching outputs. The output functions can be configured as 2-point controller, min/max alarm, 3point controller, 2-point controller with min/max alarm, etc. The relay state is indicated by 2 additional LEDs below the 7-segment display.The device identifies impermissible operating states like display or system errors and displays a corresponding error code.NiCr-Ni type KTTL signal 0..9999 switching con- U/min tact NPN, PNPSwitching outputs Switching behavior: 2 switch. outputs, not electrically isolated : selectable: low-side, high-side orpush-pull : low-side: 28 V / 1 A high-side: Uv / 200 mAConnection data Output functions DescriptionFunction Output 1Output 22-point controllerdigital 2-point controller---3-point controllerdigital 2-point controllerdigital 2-point controller2-point controller with min/max alarmdigital 2-point controllermin/max alarmMin/max alarm, together---min/max alarmMin/max alarm, individualmax alarmmin alarmAccuracy Standard signal: < 0.2 % FS ±1digit (for 0..50 mV: < 0.3 % FS ±1digit) Resistance thermometer : < 0.5 % FS ±1digitThermocouple : < 0.3 % FS ±1digit (for type S: < 0.5 % FS ±1digit) Frequency: < 0.2 % FS ±1digit2-wire connection continued on next page1
