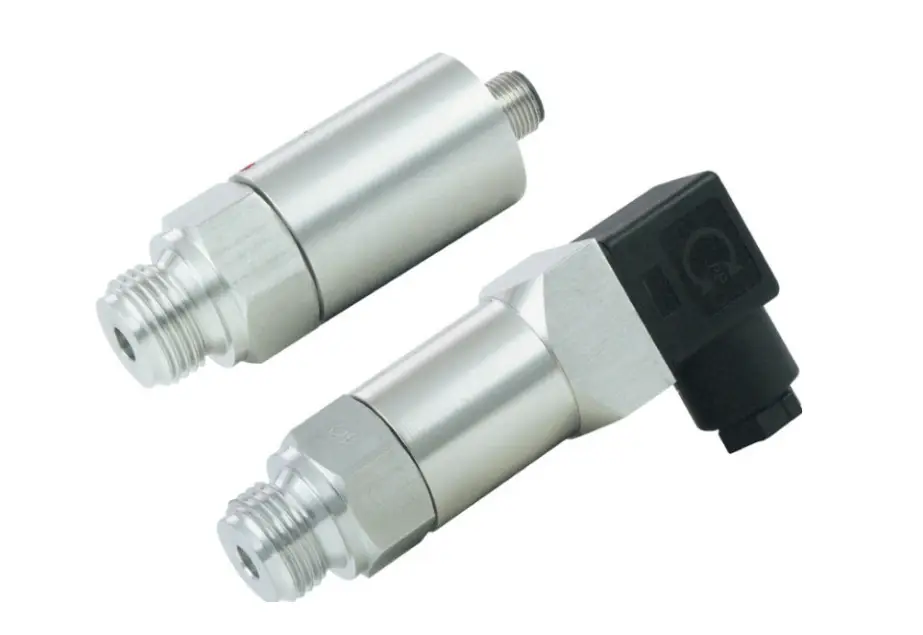

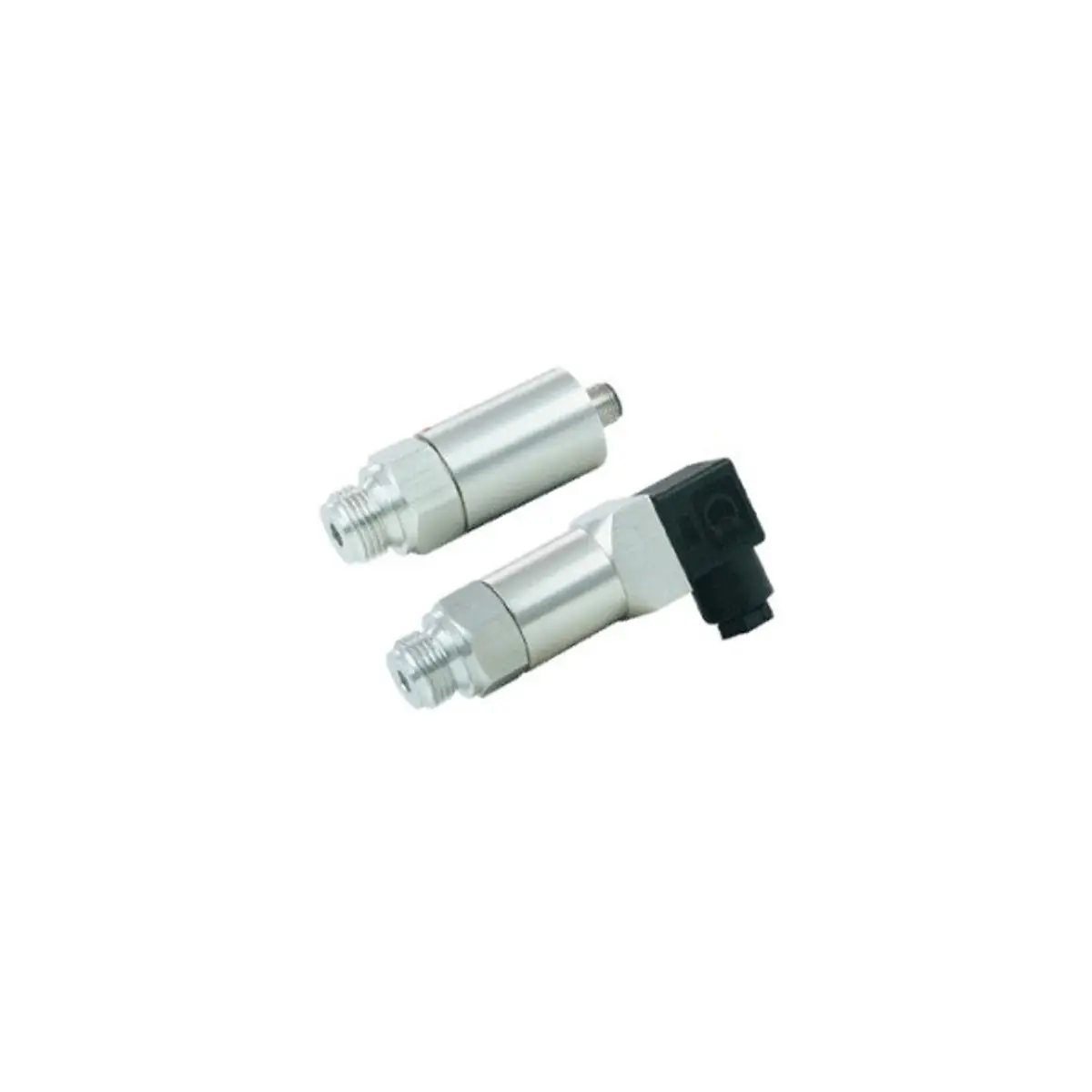

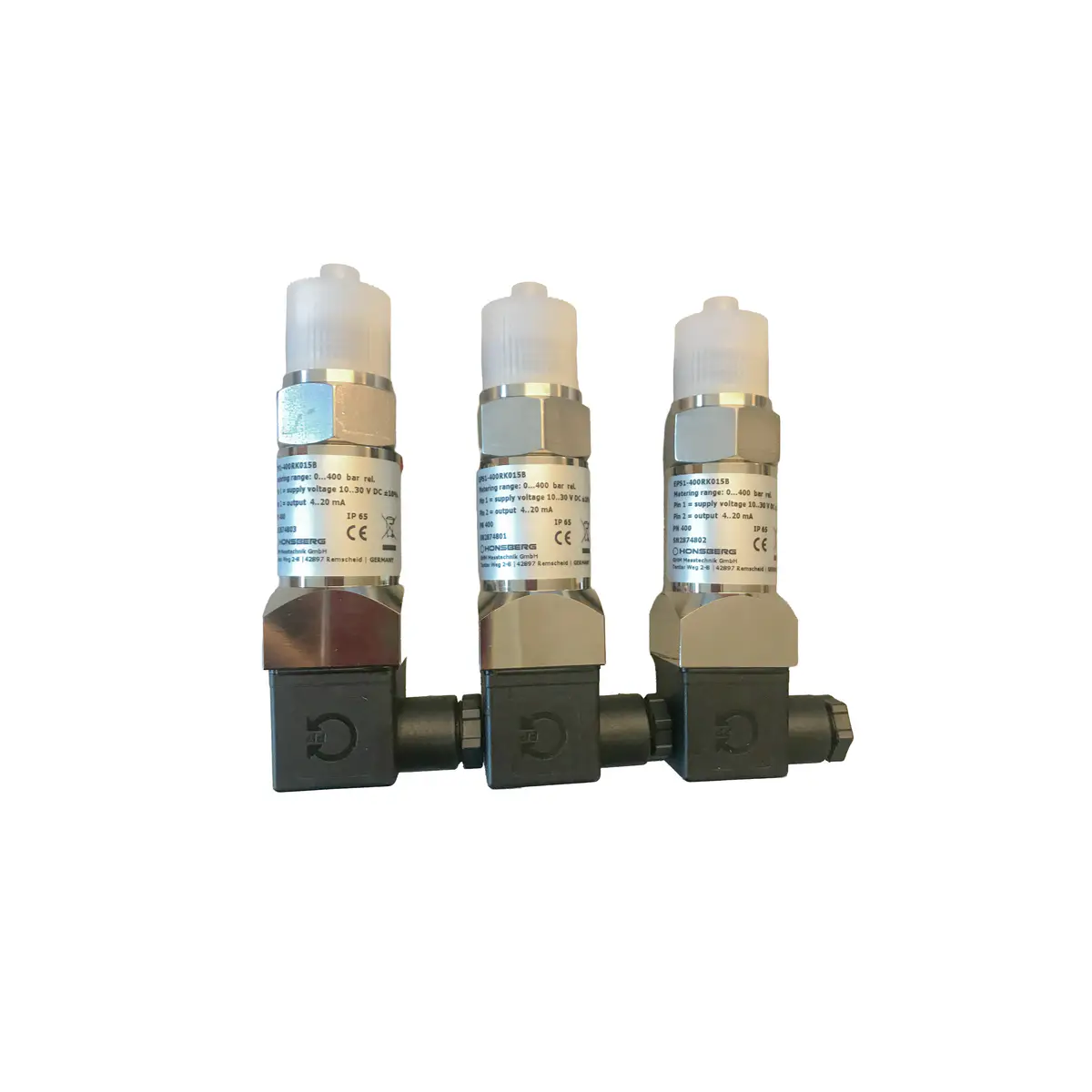

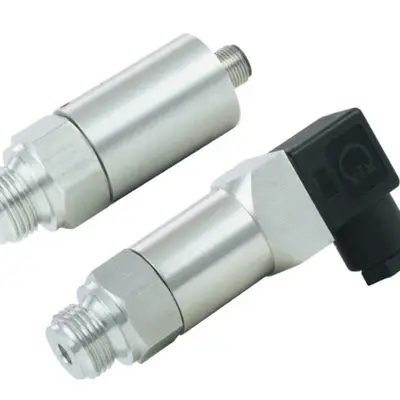

Senseca EPS1-400RK015B Pressure Transmitter

Media temperature Ambient temperature Storage temperature Media Materialmedium-contact Materials non-mediumcontact Supply voltage Analog output LoadPressure Transmitter EPS1● ● ● ●-20..+80 °C (with gooseneck option max. 120 °C) -20..+70 °C -20..+80 °C fluids and gasesprobe 1.4571, Al2O3, FKM CW614N, PP, NBR10..30 V DC ±10 % 4..20 mA two-wire max. 800 Ohm at 24 V (100 Ohm at 10 V/1.1 kOhm at 30 V,linear at operating voltage) for round plug connector M12x1, 4-pole or plug DIN 43650-A / ISO 4400yesElectrical connection Reversal polarity protected Ingress protection IP 67 round plug connectorIP 65 plug DIN 43650-A / ISO 4400 Weight approx. 0.25 kg Conformity CE4..20 mA two-wire pressure transducer Ceramic cell made from Al2O3 Pressure cell protected from mechanical damageInfinitely adjustably rotatable cable outlet for clean alignmentWiringCharacteristics The EPS1 pressure transformer measures static and dynamicpressures in fluids and gases. The robust 100% metal construction makes it suitable for universal industrial use.The pressure transformer consists of a measuring cell (four extension measurement cells using thick film technology applied toa ceramic substrate) and the converter / counter. This converts the bridge signal into a pressure-proportional 4..20 mA signal. Thepressure cell is connected to the medium via a drilling with 8 mm diameter, and this construction protects it securely from mechanicaldamage.1 Sensorbrown white2+10..30 V DC signal outputBefore the electrical installation, it must be ensured that the supply voltage corresponds with the data sheet.Technical data Sensor Process connection Measurement ranges and pressureresistanceMeasurement accuracy Repeatabilityceramic cell with measuring bridge using thick film technology male thread G 1/2 A or G 1/4 ARange* barpsiOverBurst pressure** pressure barbar0.. 1 0… 14,5 5 6 0.. 2 0… 29,0 5 6 0.. 5 0… 72,5 7,5 15 0.. 10 0… 145 1530 0.. 20 0… 290 30 60 0.. 50 0… 725 75 150 0..100 0…1450 150 250 *Optional measurement ranges on requestAll pressure values relative (differential pressure to the environment) **The pressure transmitters may be loadedwith the specified overpressure < 1 sec.±1 % of final value;plus 0.05 %/K at < 0 °C and > 60 °C ±0.5 % of full scale valuedsh_fam_eps1_en_vs01 V1.02-061
