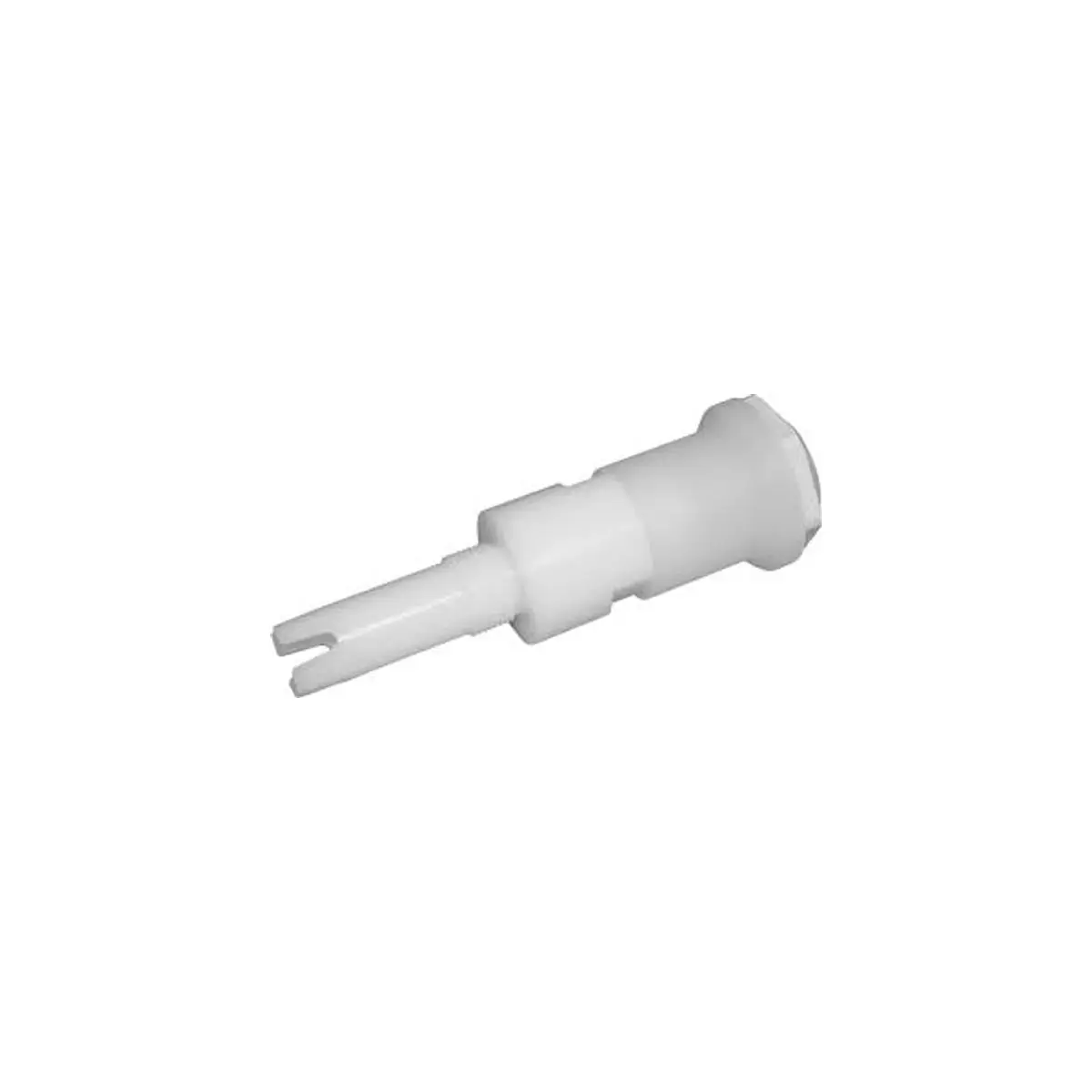

Senseca EA2630-G¾A-0-00 434315 Installation Fitting

Senseca Germany GmbH Tenter Weg 2-8 | 42897 Remscheid | GERMANY Phone +49 2191 9672-0 | info(at)senseca.comProduktinformationIn-line Fitting EA1630 / EA2630Dimensions EA1630Tip protectionCharacteristics Compact fitting with Whitworth process connection acc. toDIN ISO 228.This In-line fitting has been designed for electrochemical cells like pH/ORP-, conductivity-cells with PG13.5 process connection. Itprotects the sensor and ensures a proper measurement.The fitting is conceived for the application in the chemical industry.EA2630Process connection ABG¾AØ23.5G1AØ25Ordering code Technical data Process connection : pipe thread acc. to DIN ISO 228Process material : PVDF Operating temperature : -10..+120 °C steam sterilization 140 °C < 1 hProcess pressure : max. 16 barpi-ma-EAX630_E V2.01-001.EA2.-3.-4.-1. Model 1630 head mounting at UNICON-pH 2630 field mounting2. Process connection (A) G¾A G1A3. Sensor type 0 standard pH / ORP combined-electrodes4. Options 00 without option 01 with integrated tip protection (only for pH and ORP combined-electrodes)1
