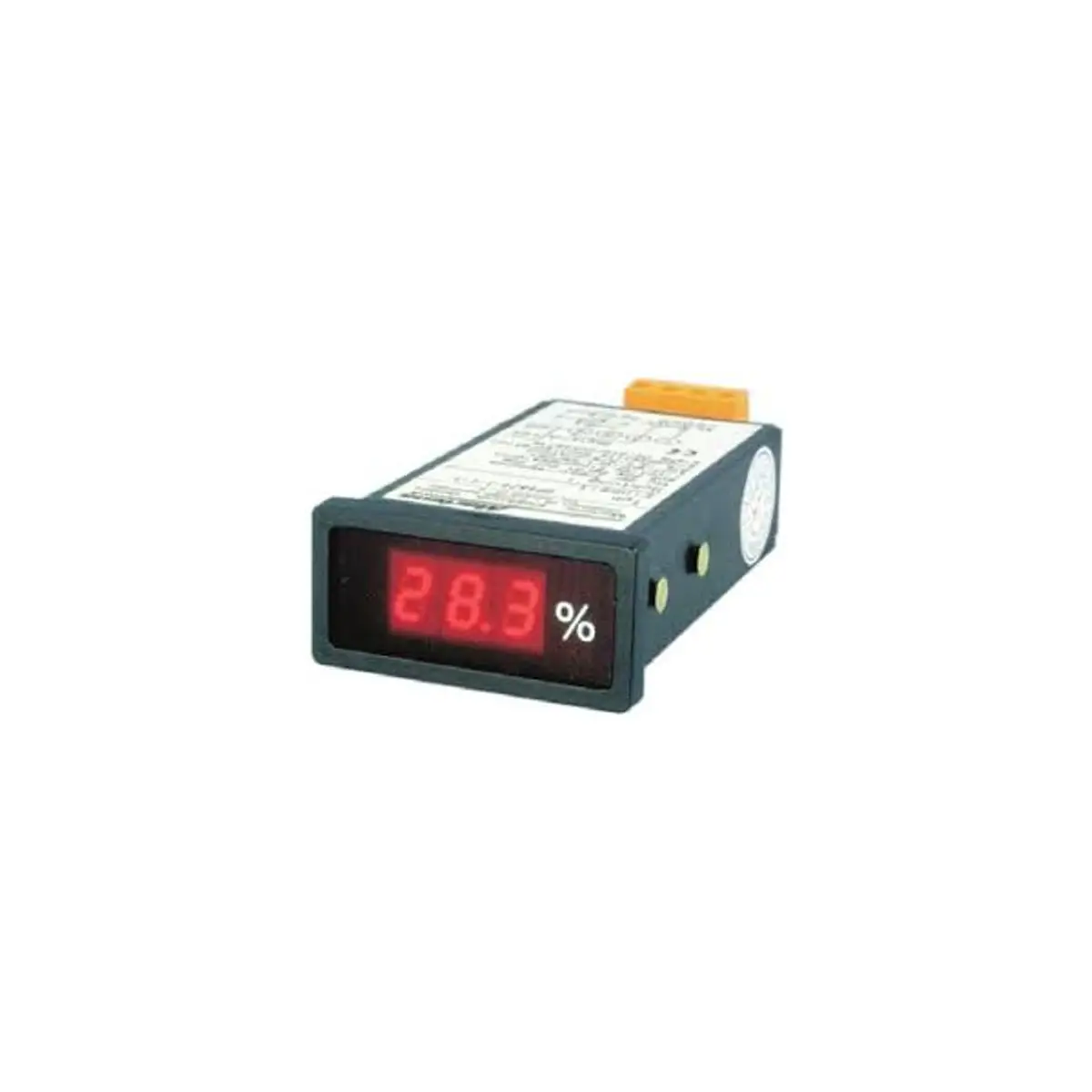

Senseca DP4824-1-1-1 Digital Panelmeter

Digital PanelmeterGHM-Messtechnik GmbH • Standort Martens Kiebitzhörn 18 • D-22885 Barsbüttel / Germany+49-(0)40-670 73-0 • Fax +49-(0)40-670 73-288  [email protected] • www.ghm-messtechnik.deTechnical data Power supply Supply voltage Current consumption Operating temperature-conformity::::10.8 ... 30 V DC, max. 5 % ripple < 50 mA -10 ... +60 °C (14 ... 140 °F)EN55022, IEC61000-4-2/4/11Input Data (standard device) Voltage input :Overload voltage :Current input :Overload current :Pt100 measuring current :Pt100 indication range :Ri > 8 MΩ max. 30 V DC Ri < 100 Ω max. 60 mA approx. 3 mA -99...400 °C (-146 ... 752 °F)-99...700 °C (-146 ... 1292 °F) (accuracy 0.5 %) Resistance current : approx. 3 mAResistance indication range : 0...100 Ω Accuracy (standard device) : < 0.1 % +/- 1 digitTemperature coefficient : < 50 ppm/K for voltage and current < 250 ppm/K for Pt100 and resistanceDisplay Range Conversion rate Decimal point selection Overflow indicator:::::3-digit LED red or green, 7.6 or 10 mm -99...999 digit switch selectable from 4/s to 0.3/sswitch selectable ‟- - -‟ for neg. overflow, EEE for pos. overflowCase Weight Connection Protection front::::slide-in unit according to DIN 43700 of Noryl GFN 2 SE 1 0.8 kg plug-in terminal, IP20 acc. to German BGV A3, max 1,5 mm²IP54 (IP65 optional)DimensionsPanel cut-outWall thickness max. 5mm Mounting distance at the side min 6mm -2-
