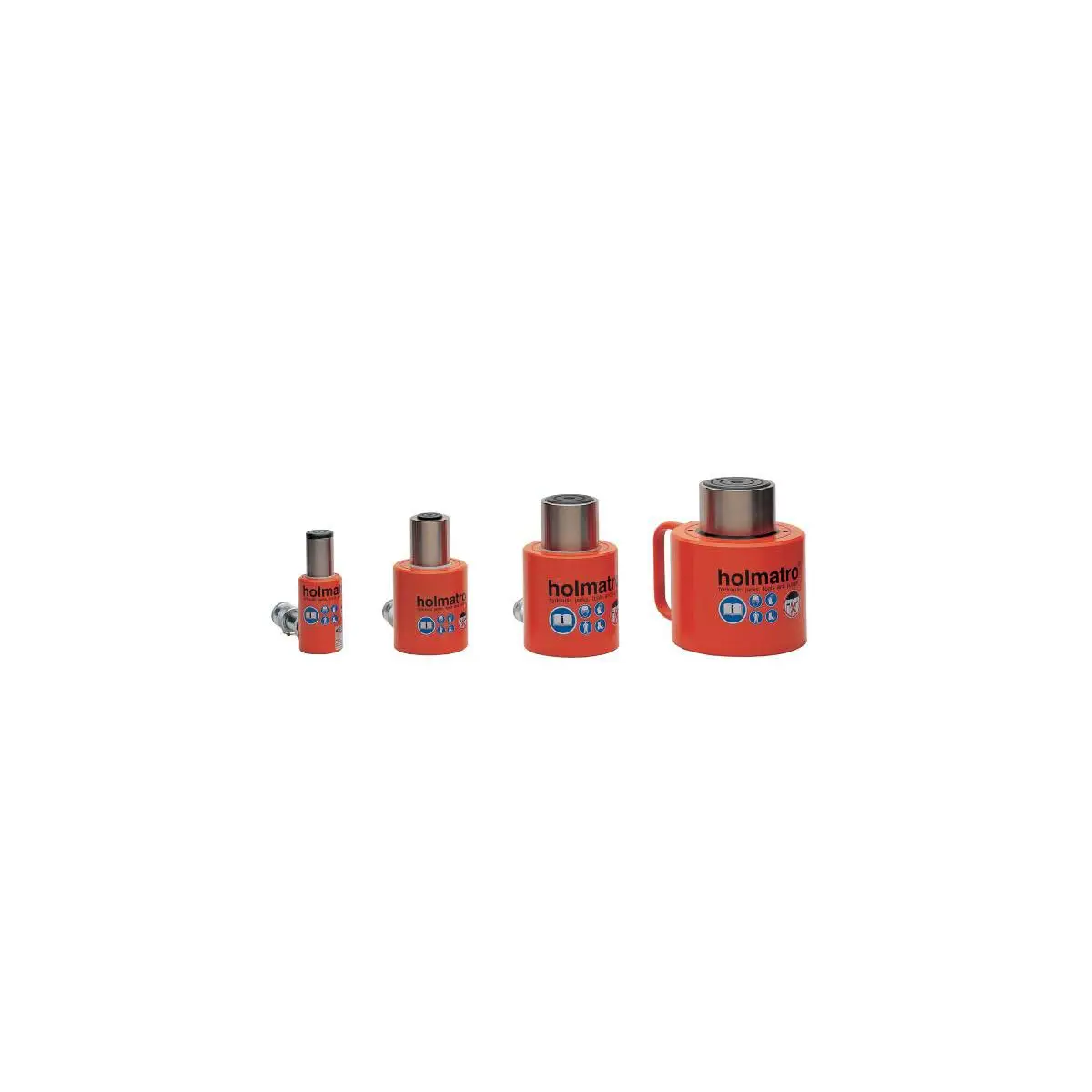

Holmatro HJ G 15 400 Hydraulic Cylinder

CYLINDER HJ 400 G 15Single acting, gravity return cylinder.Standard supplied with:• High Flow female coupler A 118• Flat saddleDetailsArticlenumber100.112.100Basic specificationsmodelHJ 400 G 15max. working pressure720 / 72 (bar/Mpa)10443 psiPerformancetonnage400 t881849 lbstroke150 mm5.9 inclosed height402 mm15.8 incapacity3750 kN / 382.4 t / 3750 / 382.4 (kN/t)843034 lbfeffective pressure area530 cm282.2 sq. in.General specificationsrequired oil content (effective)7950 cc268.8 ozacting typesinglereturn typegravitymaterialsteelcylinder typehigh tonnageconnectionA 118Dimensions, weight and temperatureweight, ready for use322 kg709.9 lbTechnical drawing dimensionsdimension A402 mm15.8 indimension B358 mm14.1 indimension C200 mm7.9 indimension D70 mm2.8 indimension E76 mm3 indimension F395 mm15.6 inI typeI-1
