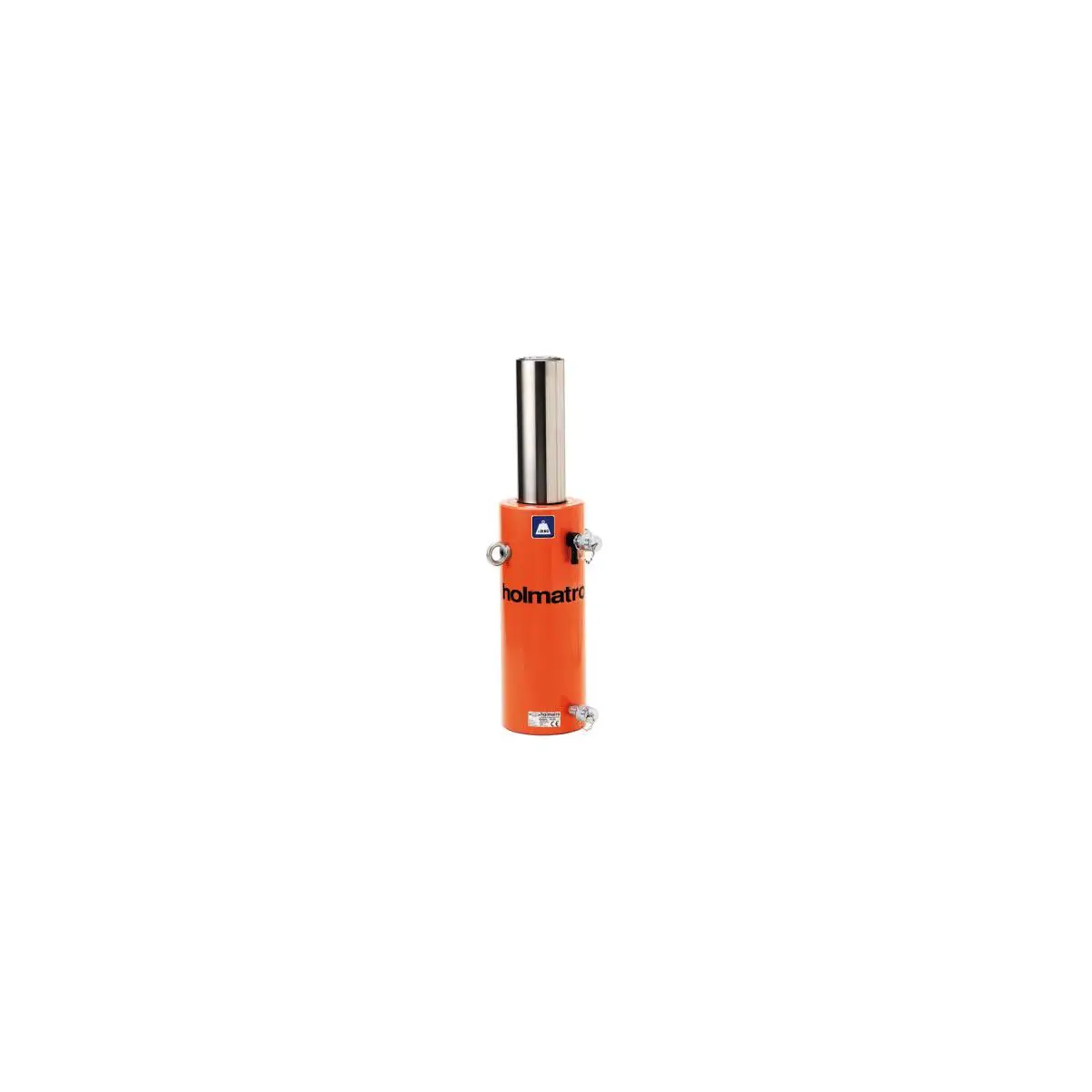

Holmatro H 100 HJ 30 Hydraulic Cylinder

HJ 100 H 30CYLINDER HJ 100 H 30Double acting, hydraulic return cylinder. Standard with High Flow female coupler A 118 on inlet port, High Flow female coupler with pressure relief valve A 418 on outlet port and flat saddle.Standard supplied with:• High Flow female coupler A 118• Flat saddleDetailsArticlenumber100.122.054Basic specificationsmodelHJ 100 H 30max. working pressure720 / 72 (bar/Mpa)10443 psiPerformancetonnage100 t220462 lbstroke300 mm11.8 inclosed height497 mm19.6 incapacity1029.3 kN / 105 t / 1029.3 / 105 (kN/t)231396 lbfeffective pressure area (press)143 cm222.2 sq. in.effective pressure area (retract)56.6 cm28.8 sq. in.General specificationsrequired oil content (press)4290 cc145.1 ozrequired oil content (retract)1695 cc57.3 ozacting typedoublereturn typehydraulicmaterialsteelcylinder typehigh tonnageconnectionA 118Dimensions, weight and temperatureweight, ready for use85 kg187.4 lbTechnical drawing dimensionsdimension A497 mm19.6 indimension B178 mm7 indimension C105 mm4.1 indimension D170 mm2.8 indimension D285 mm3.3 indimension E52 mm2 indimension F490 mm19.3 inI typeI-1dimension P70 mm2.8 in
