Holmatro 100 Purpose 5 S HGC Multi Cylinder

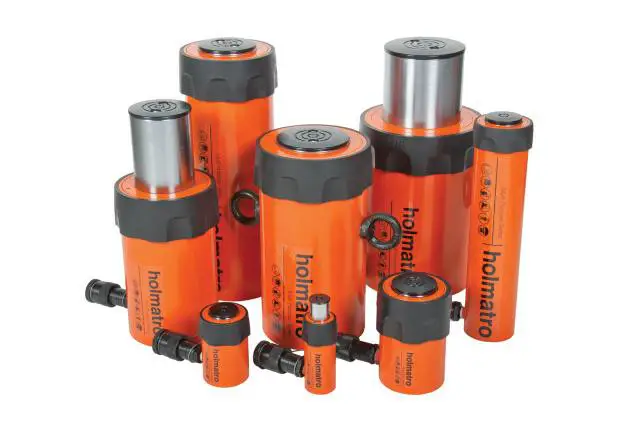

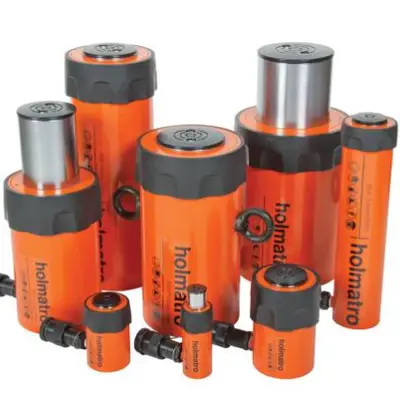

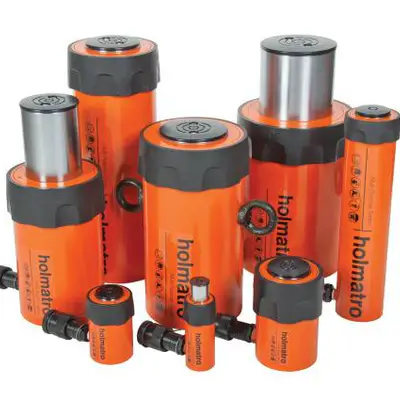

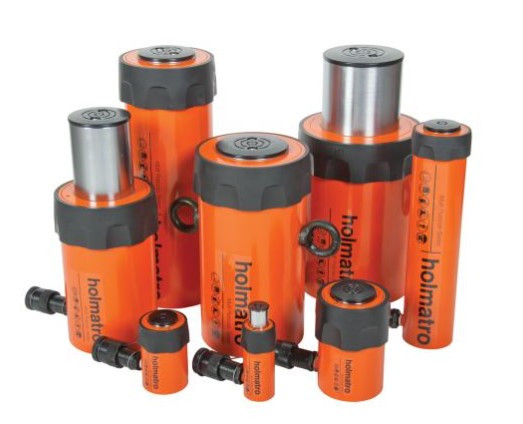

MULTI PURPOSE CYLINDER HGC 100 S 5High quality Multi Purpose Cylinder. Fitted with unique features that considerably lengthen its life span and service life. Offers appropriate solutions for the most varied applications. Holmatro Multi Purpose Cylinders come in 50 models and are available in different capacities and with different stroke lengths.Standard supplied with:• High Flow female coupler A 118• Flat saddleDetailsArticlenumber100.112.257Basic specificationsmodelHGC 100 S 5max. working pressure720 / 72 (bar/Mpa)10443 psiPerformancetonnage100 t220462 lbstroke50 mm2 inclosed height218 mm8.6 incapacity1031 kN / 105.1 t / 1031 / 105.1 (kN/t)231778 lbfeffective pressure area143.1 cm222.2 sq. in.General specificationsrequired oil content (effective)716 cc24.2 ozacting typesinglereturn typespringmaterialsteelcylinder typemulti purposeconnectionA 118Dimensions, weight and temperatureweight, ready for use35.3 kg77.8 lbTechnical drawing dimensionsdimension A218 mm8.6 indimension B175 mm6.9 indimension C1117 mm4.6 indimension C272 mm2.8 indimension D80 mm3.1 indimension E30 mm1.2 indimension F210 mm8.3 indimension G10 mm0.4 indimension J6 7/8”-12-UN threadsizedimension K57 mm2.2 indimension M10 mm0.4 indimension N146 mm5.7 indimension OM12x24 (4x) threadsizedimension T125 mm4.9 indimension U54 mm2.1 inangle A145 °dimension L80 mm3.1 inNormsASMEB30.1
