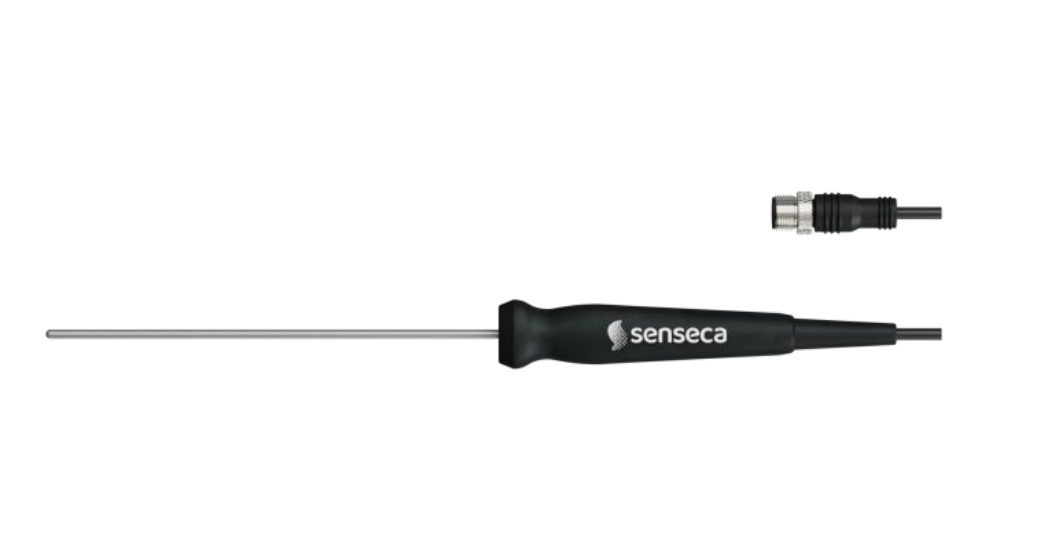

Senseca AX111-D3-B-150-L02-P-LE-SA Pt100 Immersion Probe

TECHNICAL SPECIFICATIONTECHNICAL SPECIFICATIONSMeasuring elementAX 111-xxAX 115-xx Construction AX 11x-D3 / -DH3AX 11x-M3 Accuracy Measuring range ***)AX 111-D3AX 115-D3AX 111-DH3AX 115-DH3AX 111-M3AX 115-M3 Response time (T90)Output Connection optionsDimensions Weight MaterialsProtection degree ApplicationsPt100, thin film sensor Pt100, wire-wound sensor Rigid probe stem Ø3 mm mineral insulated *) Ø 3 mmTolerance classes B, A, AA, 1/10 B Attention: Note the scope of applicability of the classes **)-50…+250 °C, available classes: B, A or AA, thin film, rigid stem -50…+250 °C, class 1/10 B wire-wound, rigid stem-50…+400 °C, class B, thin film, rigid stem -100…+400 °C, class A, wire wound, rigid stem-200…+600 °C, class B thin film, mineral insulated, bendable -50 … +250 °C, class 1/10 B, wire wound, mineral insulated, bendable- D3 water 0.4 m/s < 2 s, air 2 m/s approx. 40 s- DH3 water 0.4 m/s < 10 s, air 2 m/s approx. 40 s- M3 water: 0.4 m/s < 5 s air 2 m/s approx. 60 s Pt100 4-wire- M12 4-pole male A-coded,- Mini-DIN 4 pole (for GMH 37xx)- loose ends Stem: Ø3 mm, L = 150/300 mm (other lengths on request) Cable: Ø4 mm, L = 1, 2 or 5 m110 g approx. with 1 m cable Stem: AISI 316, Handle: Polyamide (PA6-GF30, max. 120°C), optionally molded, for permanentunderwater use (-WD, PVC cable only) Cable: PVC (permanently up to +80 °C / short-term2 hours per session up to+105 °C) IP67, with option “Waterproof molded handle” for continuous operation underwater Immersion, insertion*) Mineral-insulated temperature probes are filled with ceramic powder inside the sensor tube, thus achieving ahigher temperature resistance, and the probes can be bent within certain limits (except the first 4 cm from the tip).**) following tolerance classes of platinum resistors are standardized according/aligning to IEC 751 and EN 60751:Tolerance class B AAA (= 1/3 B) 1/10 BNormIEC 751 / EN 60751IEC 751 / EN 60751IEC 751 / EN 60751 nonelimiting deviation in °Kelvin ± (0,30 + 0,00500 • |temperature|) ± (0,15 + 0,00200 • |temperature|)± (0,10 + 0,00167 • |temperature|) ± (0,03 + 0,00050 • |temperature|)wire wound -196 to +600 °C -100 to +450 °C -50 to +250 °C -50 to 100 °Cthin film -50 to +500 °C -30 to +300 °C 0 to +150 °CDepending on the class, the limiting deviation is only valid within the named limited range.Higher deviations are to be expected outside the limited range of validity.Ageing and vibration can lead to drift, which further reduces accuracy.***) The final measuring range depends on the design of the sensor (mineral insulated or not) and the sensor type(wire-wound/thin film). Repeatedly falling significantly below/exceeding the validity range can have negative effectson sensor accuracy.The measuring range must not be exceeded under any circumstances, otherwise in the worst case the sensor may bedestroyed or at least the accuracy reduced.AX 111 / AX 115-D_M2/4V1.7 – 07/2025
