Bollfilter 1942020 Filterelement

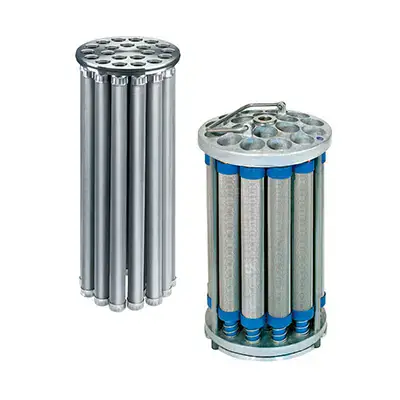

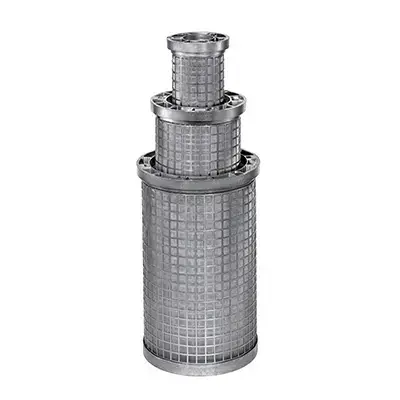

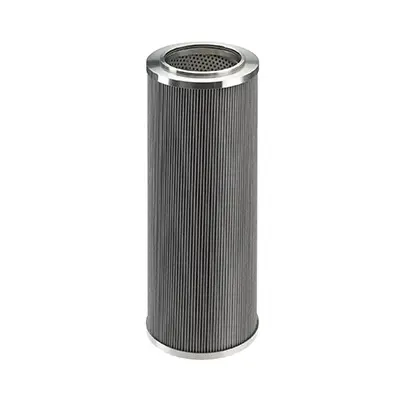

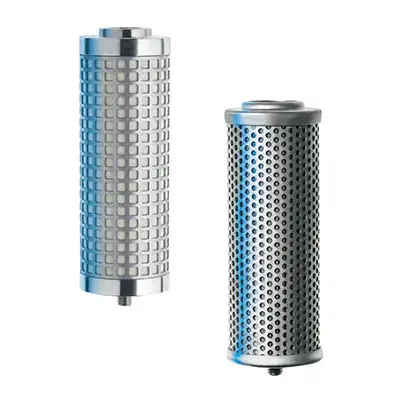

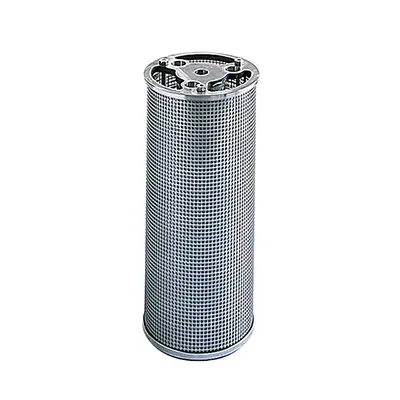

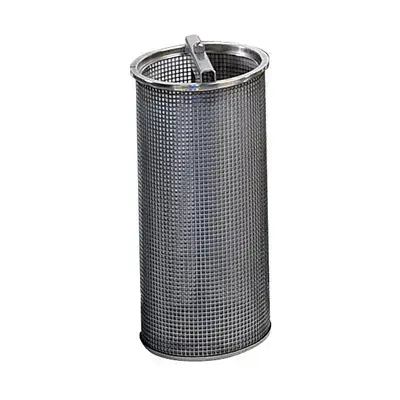

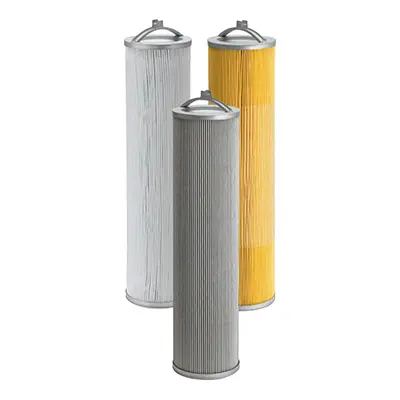

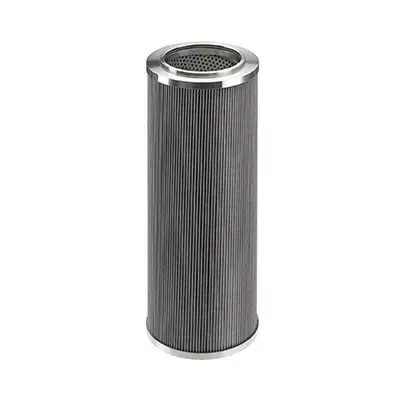

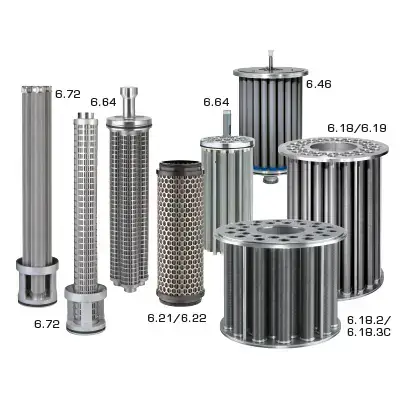

Filter cartridgeStar-pleated elementMultimantle elementRing elementBasket elementThe filter cartridge is a disposable filter element for highest filtration requirements. The perforated plate supportingbody guarantees optimum stability and optimum protection for the filter media.The pleated filter media gives the filter element a large filtration surfaceon a small diameter.This allows long duty intervals and the use of fine filter meshes with low pressure losses.The multimantle element consists of several cylindrical filter mantles. These provide a large filtrationsurface with a small space requirement and allow the use of fine filter meshes.The ring element is constructed similarly to the basket element but it has an additional internal filter cylinder which increasesthe filtration area by approximately 30%.The basket element is suitable for coarse filtration. The contamination collects inthe basket and can be removed easily for cleaning.21 3BOLLFILTER Simplex Type 1.78.1/1.58.1, BFB-PBOLLFILTER Simplex Type 1.12.2, 1.78.1/1.58.1,BFB-PBOLLFILTER Simplex Type 1.03.2, 1.65.1/1.53.1BOLLFILTER Simplex Type 1.03.2, 1.65.1/1.53.1BOLLFILTER Simplex Type 1.12.2, 1.03.2, 1.65.1/1.53.1BOLLFILTER Duplex Type BFD, BFD-P, 2.04.5*BOLLFILTER Duplex Type 2.04.5, BFD, BFD-PBOLLFILTER Duplex Type 2.05.5BOLLFILTER Duplex Type 2.05.5BOLLFILTER Duplex Type 2.04.5, 2.05.5, BFDFlushing liquid treat­­ ment for type 6.64––––3 µm – 50 µm10 µm – 250 µm*10 µm – 2000 µm70 µm – 2000 µm70 µm* – 5000 µmpaper (1), polyester (2) or fibre glass (3)stainless steel wire meshstainless steel wire meshstainless steel wire meshstainless steel wire mesh, perforated plate–optionaloptionaloptionaloptional[[[ ][ ]disposablemanual cleaning* for type 2.04.5:not applicable for all housing sizes* for types 1.12.2, 2.04.5:10 µm – 150 µm[ ] manual cleaning]manual cleaning]manual cleaning* for types 1.12.2, 2.04.5:150 µm – 5000 µm10 | 11
