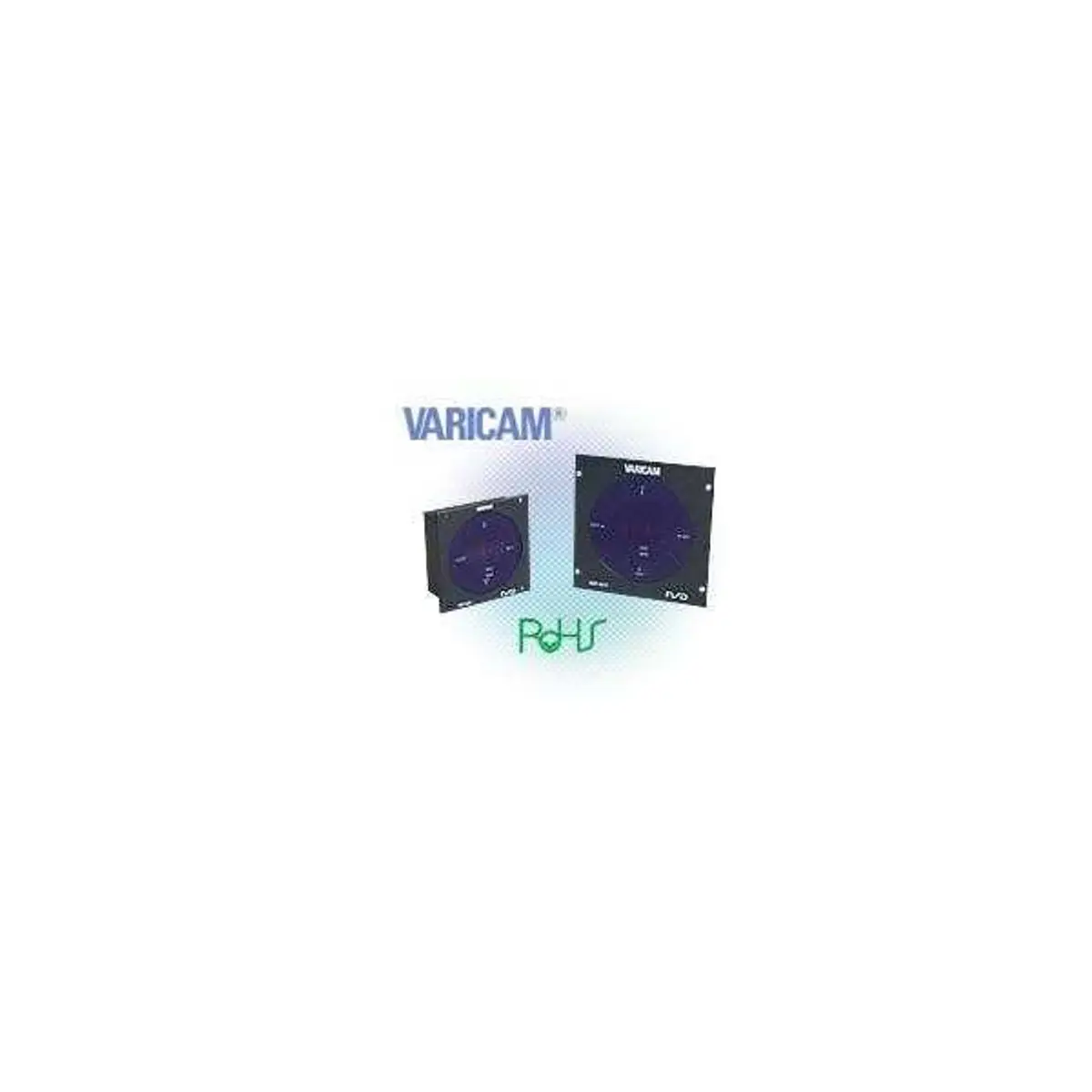

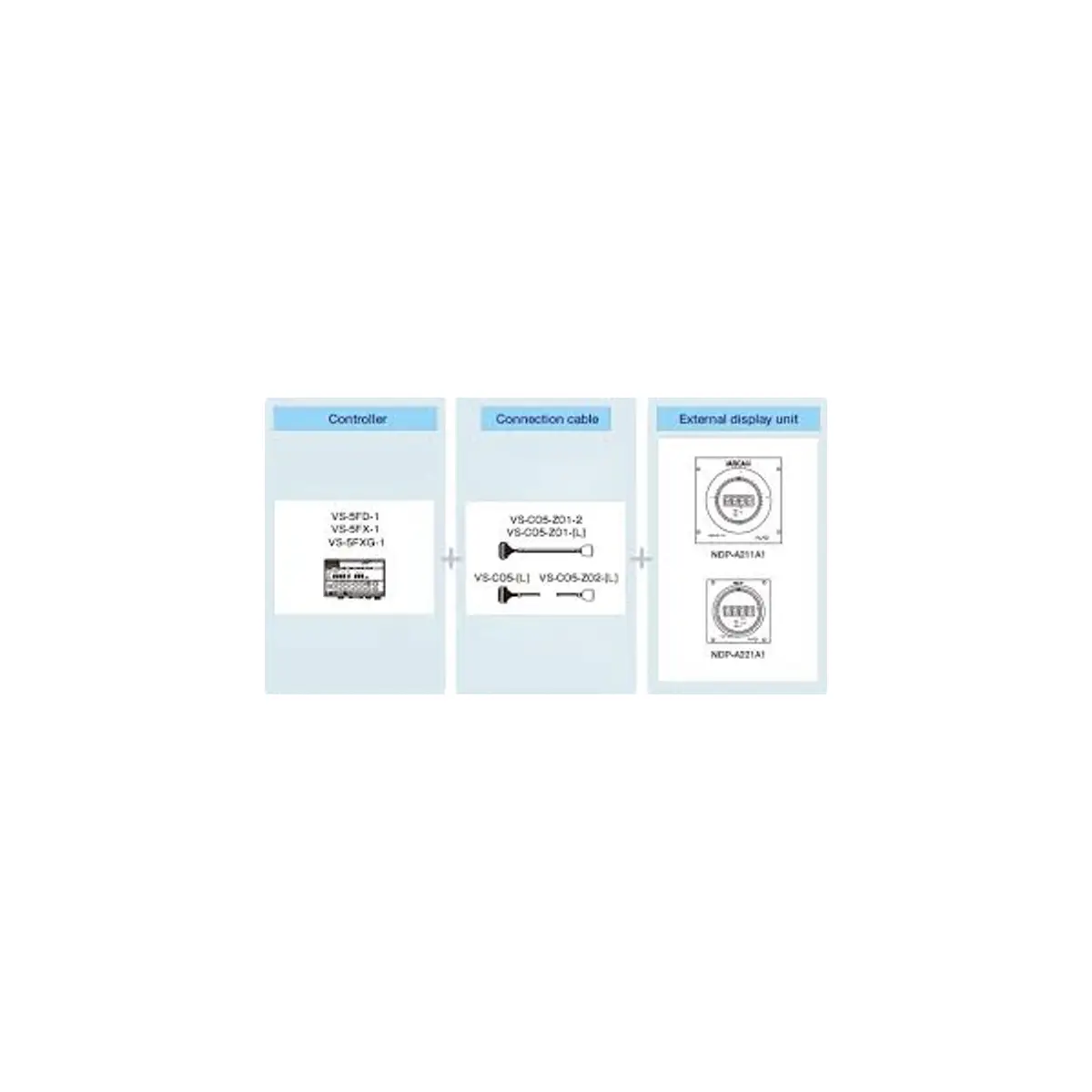

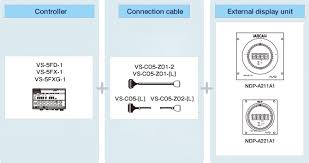

NSD NDP-A221A1 External Display Unit for VARICAM

External Display Unit for VARICAM3. SPECIFICATONS 3-1. General Specifications ItemSpecifications NDP-A211A1 (standard type)Model Power supply voltage Permissible power voltage range Power consumptionInsulation resistance Withstand voltage Vibration resistance Ambient operating temperatureAmbient operating humidity Ambient operating environment Ambient storage temperatureGrounding Construction Outside dimension (mm) MassNDP-A221A1 (compact type)24VDC 21.6 to 30VDC 5W or less 20 MΩ or more between external DC power terminals and ground(by 500 VDC insulation resistance tester) 500 VAC, 60Hz for 1 minute between external DC power terminaland ground 20m/s2 10 to 500Hz, 10cycles of 5 minutes in 3 directions, conforms to JIS C 0040 standard0 to +55°C (No freezing) 20 to 90 %RH (No condensation) Free from corrosive gases and excessive dust-10 to +70°C Must be securely grounded (ground resistance of 100 Ω or less)Panel mounting 110(W) x 110(H) x 46(D) 150(W) x 150(H) x 46(D) (Refer to dimensions for details.) (Refer to dimensions for details.)Approx. 0.7kg Approx. 0.6kg3-2. Performance Specifications ItemSpecificationsDisplay itemsCurrent position value, rotation speed Roulette display area: 9° Numeric display area: 1°Current position value display unit Rotation speed display range2500 spm (VS-5FD /5FX /5FXG /5ED /5EX /5EXR /5EXG) 4500 spm (VS-6E /7 /7R)Rotation speed display sampling time1sMax. cable lengthMax. 100 m *1Note *1: If a cable between the external display unit and VARICAM is extended, a speed error will occur depending onthe rotation speed. For the speed error, refer to the following figures. (The value might be different by thecondition.)5
