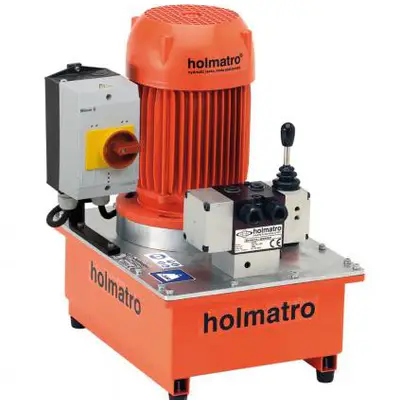

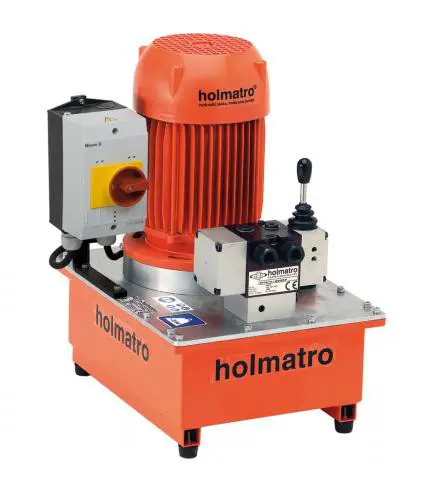

Holmatro W 09 SD Vari 6 Pump

Vari pump – two-stage – 230 V – 50 Hz – 1ph. Standard supplied with 3/8” NPT female thread. Excluding coupler, hoses and pressure gauge.Vari pump – two-stage – 230 V – 50 Hz – 1ph. Standard supplied with 3/8” NPT female thread. Excluding coupler, hoses and pressure gauge.DetailsArticlenumber100.152.028Basic specificationsmodel09 W 6 SDmax. working pressure720 / 72 (bar/Mpa)10443 psiPerformancenumber of stages2second stage pressure range200 - 720 / 20 - 72 (bar/Mpa)2901 - 10443 psifirst stage pressure range max.2901 psifirst stage pressure range0 - 200 / 0 - 20 (bar/Mpa)0 - 2901 psifirst stage output / min.2500 cc84.5 ozsecond stage output / min.900 cc30.4 ozcapacity oil tank (effective)6000 cc202.9 oznumber of outputs1General specificationsoperator typeelectric motorengine230 VAC - 1.1 kW - 50 Hz - 1 Phspeed1450 rpmDimensions, weight and temperatureweight, ready for use40 kg88.2 lbdimensions (LxWxH)400 x 300 x 441 mm15.7 x 11.8 x 17.4 in
