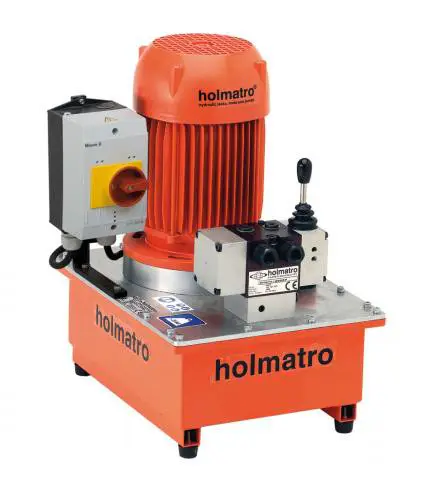

Holmatro 2 STAGE W 12 Vari 09 E, Pump

Holmatro products, including Holmatro 09 W 12 E, 2-STAGE Vari Pump, are sourced through parallel import channels and delivered to our customers worldwide with speed and reliability. Even if Holmatro 09 W 12 E, 2-STAGE Vari Pump is not listed on our website, you are welcome to request a price quote — our team will respond promptly with a tailored offer.VARI PUMP, 380V, 09 W 12 E, 2-STAGEVARI PUMP 09 W 12 EVari pump – two-stage – 400 V – 50 Hz – 3ph. Standard supplied with 3/8” NPT female thread. Excluding coupler, hoses and pressure gauge.DetailsArticlenumber100.152.058Basic specificationsmodel09 W 12 Emax. working pressure720 / 72 (bar/Mpa)10443 psiPerformancenumber of stages2second stage pressure range200 - 720 / 20 - 72 (bar/Mpa)2901 - 10443 psifirst stage pressure range max.2901 psifirst stage pressure range0 - 200 / 0 - 20 (bar/Mpa)0 - 2901 psifirst stage output / min.2500 cc84.5 ozsecond stage output / min.900 cc30.4 ozcapacity oil tank (effective)12000 cc405.8 oznumber of outputs1General specificationsoperator typeelectric motorengine400 VAC - 1.1 kW - 50 Hz - 3 Phspeed1450 rpmDimensions, weight and temperatureweight, ready for use46 kg101.4 lbdimensions (LxWxH)400 x 300 x 541 mm15.7 x 11.8 x 21.3 in
