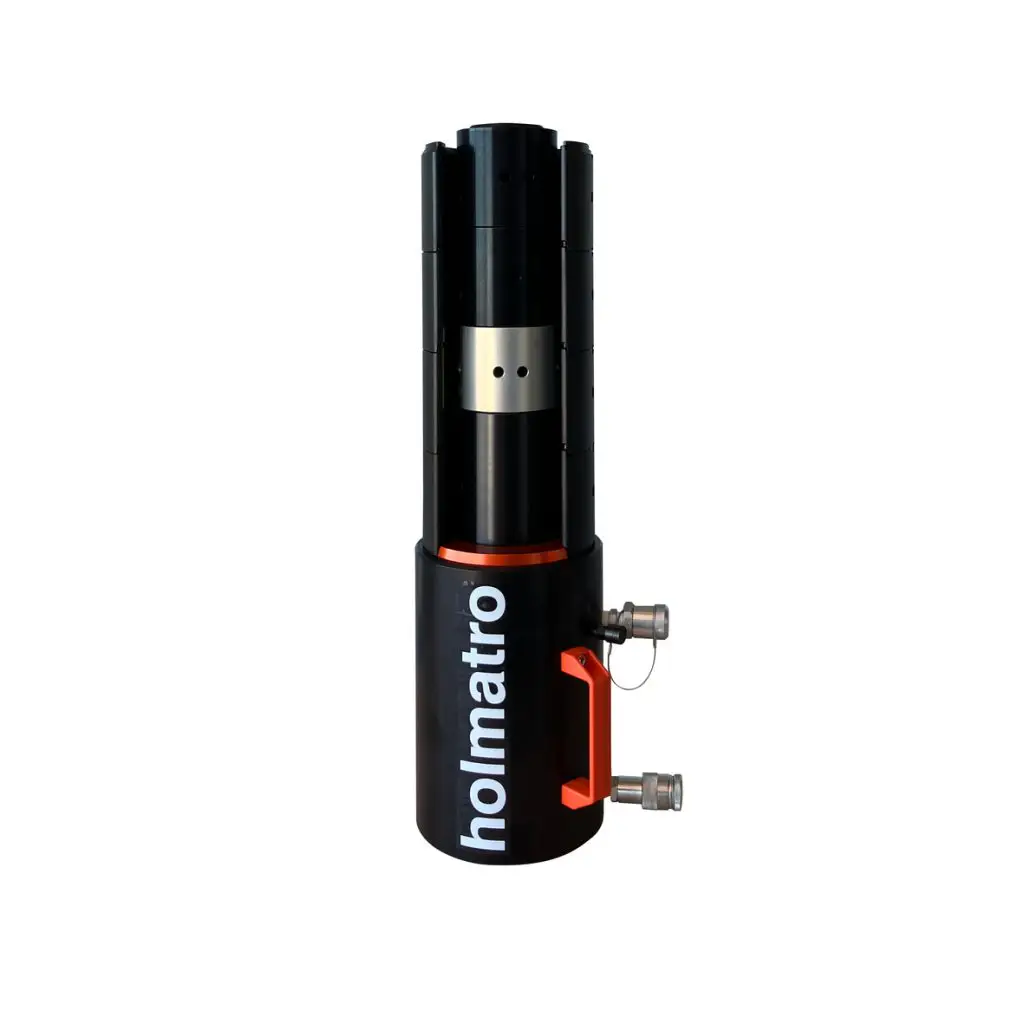

Holmatro HARC100H13 Plunger

Technical specification sheetHARC 100 H 13 | Aluminium Ring Climbing Cylinder Specifications article number101.003.014short descriptionAluminium Ring Climbing CylindermodelHARC 100 H 13max. working pressurebar/Mpa720 / 72tonnaget100strokemm130closed heightmm300capacitykN/t1030.6 / 105.1effective pressure area (press)cm²143.1effective pressure area (retract)cm²56.5required oil content (effective)cc1125required oil content (press)cc1860required oil content (retract)cc735cylinder typestandardacting typedoublereturn typehydraulicmaterial weight, ready for usealuminium kgASME23.0 B30.1Technical drawing dimensions dimension Amm300dimension Bmm195dimension Cmm80dimension D1mm76dimension D2mm56dimension Emm35dimension Fmm295dimension Pmm86I type[I2]Standard supplied with• A118 female coupler for lifting (press)• A119 male coupler for lowering (lowering)• Flat saddle Required Accessories Stacking Ring SR80/28-100101.001.625Filler piece NR2 (100mm)101.002.965Filler Piece NR1 (80mm)101.002.966Accessories Stacking Ring Fork150.001.856holmatro.com © Holmatro 2025-11-13 While the greatest care has been devoted to the content, it is possible that the information in this printed matter is incorrect or incomplete. Holmatro B.V. and its affiliated companies (hereafter: Holmatro) cannotbe held liable in any way for the consequences of activities undertaken on the basis of this printed matter. Values can vary within the manufacturer measurements. If you have any doubts about the correctness orcompleteness of the information, you shall contact Holmatro (T +31 (0)162-751480). Nothing from this printed matter can be copied and/or made public in any way without the explicit authorisation of Holmatro.
