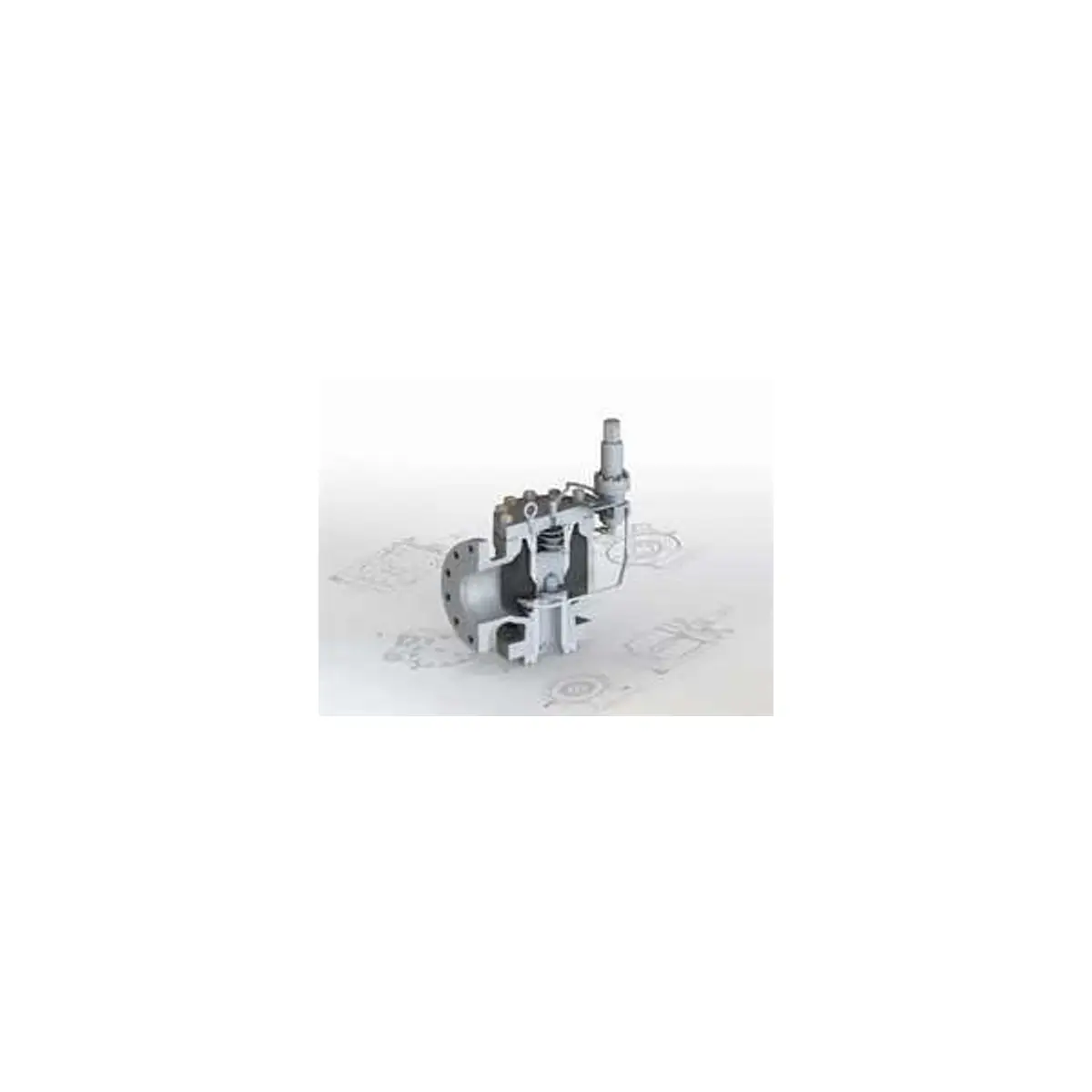

Ast SVP-7200 Pilot Valve

Pilot ValveNo flowing pilot with pop or modulating action Wide range of accessory availableSafety Relief ValvesSVP-7200Metal to metal or soft seat available Special flanges available Easy replaceable seat for quickmaintenance and costs saving Full nozzle designMain featuresFlanged, pop and modulating action, full nozzle pilot operating safety valves (ASME Sect.VIII).Media: gas, steam and liquid.Orifices: from “D” to “T”; intermediate orifices (K2, P2, Q2, R2) and full bore orifices available.Set pressure range: from 1 bar to 690 bar. Back pressure: up to 80%.Temperature range: from –252 °C to 288 °C (high temperature special design available)Materials: carbon steel, alloy steel, hastelloy, monel and other materials upon request.Options: metal or soft seat, field test connection, back flow preventer, pilot supply filter, remote pressuresense connection, manual unloader, test gag, pilot lift lever.Sizes / Pressure ClassesSize inlet & outlet: from NPS 1 to NPS 8 & from NPS 2 to NPS 12. Dual outlet available.Rating: up to ASME 2500. Special solution up to API 6A 15000 psi available.Design Codes & Product StandardsEN ISO 4126-4, EN 764-7, EN 12516, EN 1092, API 520, API 521, API 526, API 527, ASME B16.34,ASME B16.5, ASME Sect.VIII.21
